Smiths Interconnect TS06 Series Chip Attenuators

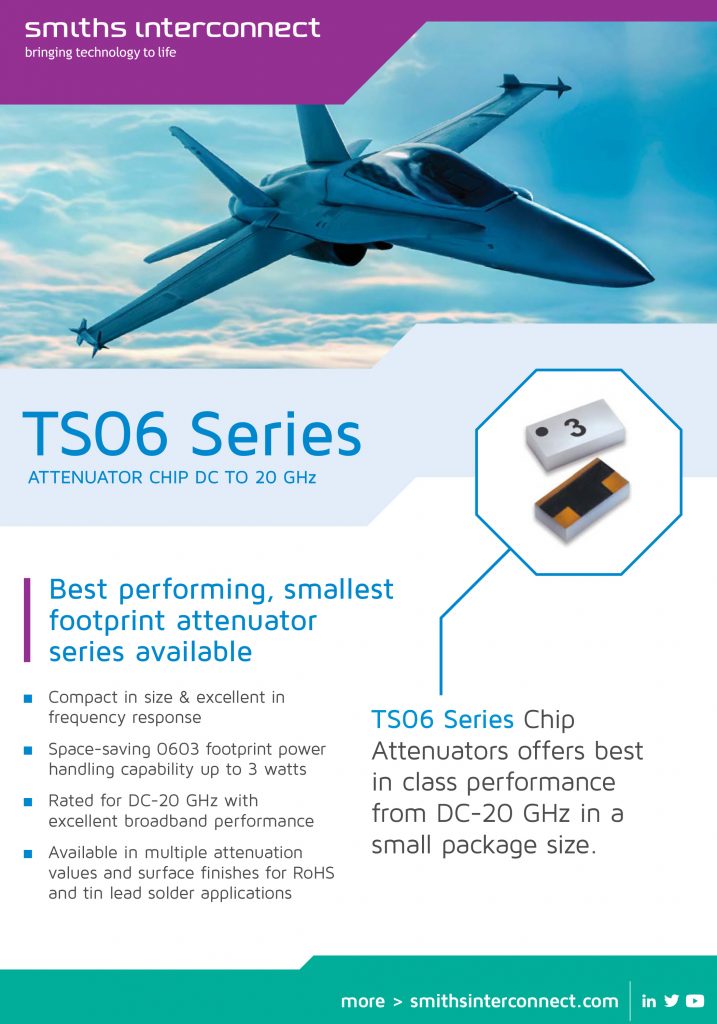

Smiths Interconnect TS06 Series Chip Attenuators

Attenuator chip DC to 20 GHz

TS06 Series Chip Attenuators offers best in class performance from DC-20 GHz in a small package size

  • Substrates – Alumina
  • Commercial and High Reliability Product Lines
  • Frequency Range from DC to 20 GHz
  • Attenuation Values from 0 to 20dB
  • Space Qualified
  • Surface mount or bondable configurations
  • All thin film construction
  • RoHS options available

Smiths Interconnect EMC’s trailblazing research and development in resistive technology over the last five decades have culminated in yet another advanced fixed attenuator series. Our latest TS06 series is compact in size and excellent in frequency response. Featuring a space-saving 0603 footprint without sacrificing power handling capability, the TS06 series is the best performer among our existing small-signal fixed attenuators in terms of attenuation accuracy and VSWR. TS06 series is the most ideal and balanced solution for designers needing a sub-20 GHz fixed attenuator in their space and commercial wireless applications.

  • Best performing, smallest footprint attenuator series available
  • Compact in size & excellent in frequency response
  • Space-saving 0603 footprint power handling capability up to 3 watts
  • Rated for DC-20 GHz with excellent broadband performance
  • Available in multiple attenuation values and surface finishes for RoHS and tin lead solder applications

Courtesy of Smiths Interconnect
