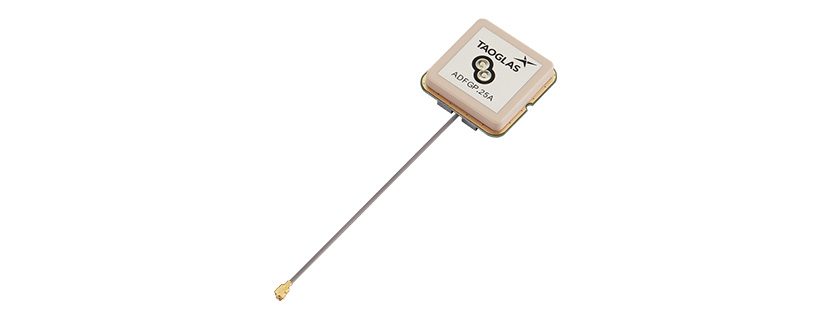

ADFGP.25A from Taoglas

ADFGP.25A.07.0060A Antenna by Taoglas

ADFGP.25A.07.0060A Antenna by Taoglas

The ADFGP.25A from Taoglas is an Embedded Dual Pin Patch Antenna that covers GPS L1, GLONASS L1CR & L1PT, Galileo E2 & L1, and BeiDou B1 bands. It delivers a gain of over 32.8 dB with a 3V supply and has an efficiency of up to 55.1%. The active patch antenna uses a double resonance design to provide wide-band operation for GNSS systems operating between 1561 to 1606 MHz.

The ADFGP.25A includes an LNA and front-end SAW filter to reduce out of band noise, such as from nearby cellular transceivers. It offers better protection from nearby radiated power surges and greatly reduces the probability of damaging GNSS receiver from nearby transmissions. This antenna measuring 25.1 x 25.1 x 7.5 mm is available with Ø1.13 cable and an IPEX MHFI (U.FL compatible) connector. This RoHS-compliant antenna is ideal for UAVs and robotics, transportation, autonomous vehicles, marine, agriculture, navigation, and RTK applications.

Product Details

    • Part Number : ADFGP.25A.07.0060A
    • Manufacturer : Taoglas
    • Description : Embedded GNSS Antenna from 1561 to 1606 MHz

General Parameters

    • Active/Passive : Active
    • Type : Embedded, Active, Ceramic, Patch
    • Amplifier Gain : 29.8 to 35.5 dB
    • Directionality : Omni-Directional
    • Polarization : RHCP
    • Axial Ratio : 2.1 to 2.2 dB
    • Cable : Coaxial Cable ø1.13, length 60 mm
    • Frequency : 1176.45 to 1602 MHz
    • Gain : -4 to -2.5 dBi (Avg gain), 1.6 to 3 dBi (Peak Gain at Zenith)
    • Efficiency : 38.9 to 55.9 %
    • Industry : GNSS
    • VSWR : 2.0:1
    • Mounting : PCB Mount
    • Impedance : 50 Ohms
    • Multi Band : Yes
    • Multi Port : No
    • Dimension : 25 x 25 x 4.0 mm
    • Weight : 13.5 g
    • Operating Temperature : -40 to 85 Degree C
    • Storage Temperature : -40 to 85 Degree C
    • Current : 5 to 5.2 mA
    • Noise Figure : 2.7 to 3.3 dB
    • Voltage : 1.8 to 5.5 V
