MA285.LBICG.001 Antenna by Taoglas

MA285.LBICG.001 Antenna by Taoglas

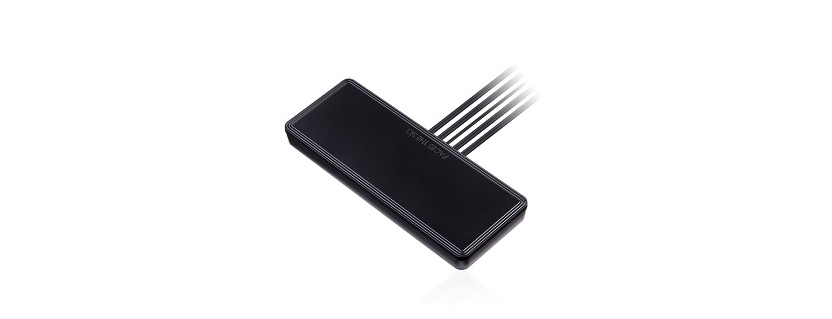

The MA285.LBICG.001 from Taoglas is a 5-in-1 Combination Antenna that includes one GNSS (GPS-GLONASS-BeiDou), 2 x LTE MIMO, and 2 x dual-band 2.4/5.8GHz Wi-Fi MIMO elements. This low-profile, omnidirectional antenna delivers powerful LTE antenna technology that includes backward compatibility to work at most worldwide 3G and 2G bands. Coupled with GPS, GLONASS & BeiDou, and Wi-Fi MIMO, it is ideal for next-generation, multiple wireless technology systems, such as vehicle telematics and applications that require highly sophisticated antennas for real-time streaming demanding high-speed video uplink and downlink into the cabin of the vehicle.

The MA285.LBICG.001 is RoHS and REACH-compliant and is available in an IP67-rated robust PC/ABS waterproof enclosure (151.8 X 59 X 13mm) with SMA(M) & RP-SMA(M) connectors and 2m RG-174 & 2m low loss TGC-200 cables. Customized cables and connector versions are also available. This adhesive-mount GNSS antenna has been designed to work equally well on both GPS/GALILEO and GLONASS bands, leading to higher location accuracy and stability of tracking in urban environments. It is suitable for application in next-generation OEM automotive connectivity, multimedia, navigation and telematics systems, V2V, V2X and fleet management applications, real-time HD video streaming, digital signage and remote monitoring, and first net responder routers.

Product Details

    • Part Number : MA285.LBICG.001
    • Manufacturer : Taoglas
    • Description : Adhesive Mount 5-in-1 GNSS, LTE MIMO, and Wi-Fi MIMO Combination Antenna

General Parameters

    • Type : Low Profile
    • Directionality : Omni-Directional
    • Application : Automotive, Cellular, Navigation, Remote Monitoring
    • Polarization : RHCP, Linear
    • Cable : 2m RG-174 & 2m Low Loss TGC-200
    • Frequency : 698 to 5850 MHz
    • Bandwidth : 12.5 MHz (GNSS)
    • Efficiency : 23.55 to 74.46%
    • Industry : Automotive, GNSS, Cellular / Wireless Infrastructure
    • Indoor/Outdoor : outdoor
    • VSWR : 2.0:1 to 5:1
    • Return Loss : -10 to -6 dB
    • Mounting : Adhesive Mount
    • Impedance : 50 Ohms
    • Connectors : SMA(M) & RP-SMA(M)
    • Multi Band : Yes
    • Multi Port : Yes
    • Cable Length : 2 m
    • Dimension : 151.8 x 59 x 13 mm
    • Weight : 180 gram
    • Operating Temperature : -40 to 85 Degree C
    • RoHS : Yes
    • Waterproof : IP67
    • Current : 5 to 23 mA
    • Noise Figure : 2.8 to 3.0 dB
    • Voltage : 1.8 to 5.5 V
