SARA-R422M8S

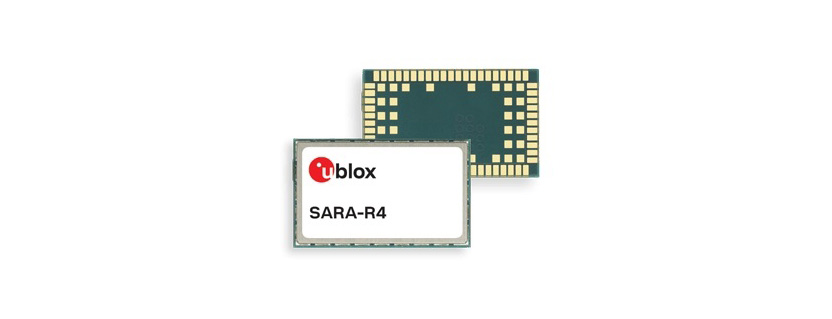

SARA-R422M8S Cellular IoT Module by u-blox AG

SARA-R422M8S Cellular IoT Module by u-blox AG

The SARA-R422M8S from u-blox is a Secure Cloud LTE M, NB-IoT, and EGPRS Module with the u-blox M8 GNSS receiver and separate GNSS antenna interface, which provides highly reliable, accurate positioning data simultaneously with LTE communication. It delivers up to 23 dBm LTE output power and has an uplink data rate of 1200 kbit/s and a downlink data rate of up to 300 kbit/s. In addition, the module offers unique hybrid positioning, in which the GNSS position is enhanced with u-blox CellLocate data, providing location always and everywhere.

The SARA-R422M8S module is certified by ANATEL, FCC, IFETEL, ISED, NCC, RCM, RED, GCF, PTCRB, AT&T, Deutsche Telekom, T-Mobile USA, Verizon, and Vodafone. It can operate in an extended temperature range from -40 to +85°C. This module is available in a 16 x 26 x 2.5 mm LGA package and is suitable for IoT applications, like smart metering, smart lighting, telematics, asset tracking, remote monitoring, alarm panels, and connected health. Critical firmware updates can be delivered with the u-blox proprietary uFOTA (firmware over the air) client/server solution that uses LWM2M, a light and compact protocol that is ideal for IoT applications.

Product Details

    • Part Number : SARA-R422M8S
    • Manufacturer : u-blox AG
    • Description : Secure Cloud LTE M, NB-IoT, and EGPRS Module for IoT Applications

General Parameters

    • 3GPP Release : Release 12, Release 13, Release 14
    • Carriers : Deutsche Telekom, T-Mobile USA, Verizon, Vodafone
    • Cellular Standards : Cat M1, Cat NB2, EGPRS
    • Certification : ANATEL, FCC, IFETEL, ISED, NCC, RCM, RED, GCF, PTCRB, AT&T
    • Dimensions : 16 x 26 x 2.5 mm
    • Firmware Update : uFOTA
    • GNSS : Yes
    • GNSS Band : GPS, Beidou, GLONASS, Galileo
    • Interface : UART, USB, DDC (I2C compliant), GPIO
    • LTE Bands : B1, B2, B3, B4, B5, B8, B12, B13, B20, B25, B26, B28, B66, B71, B85
    • Network Protocols : DTL, TCP/UDP, HTTP/FTP, HTTPS/FTPS, TLS/DTLS
    • Package Type : Surface Mount
    • Region : Global
    • SMS : Yes
    • Technology : EC-GSM-IoT, LTE-M, NB-IoT
    • Voice : No
    • Current : 3 µA
    • Downlink Datarate : 125 to 375 kbps
    • Interface Voltage : 1.8 to 3 V
    • Operating Temperature : -40 to 85 Degree C
    • Supply Voltage : 3.2 to 4.5 V
    • Transmitted Power : 23 dBm
    • Uplink Datarate : 140 to 1200 kbps
