MA256.A.LBI.001 Antenna by Taoglas

MA256.A.LBI.001 Antenna by Taoglas

MA256.A.LBI.001 Antenna by Taoglas

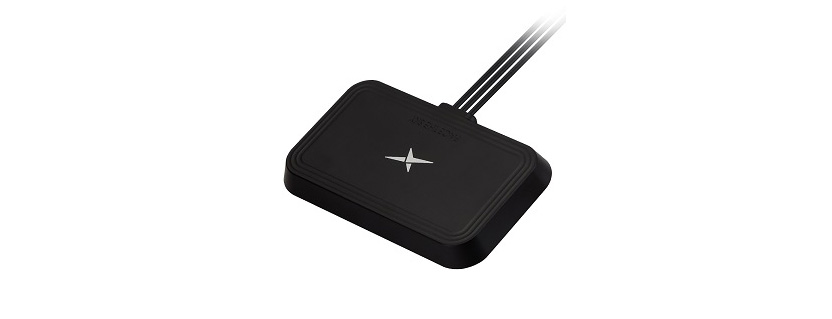

The MA256 from Taoglas is a 3-in-1 Adhesive Mount Combination Antenna for use cases requiring worldwide 4G coverage and GPS/GLONASS/BeiDou/Galileo for positioning. This low-profile antenna has been designed to be mounted directly onto glass or plastic and can be mounted internally in vehicles, via high quality, first-tier automotive approved 3M adhesive. It offers a convenient and economical alternative in-cabin mounting solution to larger permanent/on-roof mount solutions. The antenna covers fallback to 3G/2G bands where 4G coverage is not available and can also be used to cover Cat M1/LTE-M & NB-IoT bands.

This 4G MIMO (600-3000 MHz) antenna is available in an IP67-rated waterproof PC/ABS enclosure that measures 128 x 76 x 12 mm including the 3M foam adhesive with cables and connectors. Both MIMO 1 and MIMO 2 are 2 meters 1.5DS coaxial cables with SMA (M) connectors and the GPS/GLONASS/BeiDou/Galileo has a 2m RG-174 cable with an SMA (M) connector. This RoHS & Reach-compliant antenna is ideal for automotive vehicle tracking, telematics, video streaming, and robotics/autonomous applications. The antenna can be mounted internally or externally on a vehicle.

Product Details

  • Part Number: MA256.A.LBI.001
  • Manufacturer: Taoglas
  • Description: 3-in-1 GNSS and 4G MIMO Adhesive Mount Combination Antenna

General Parameters

  • Type: Low Profile
  • Directionality: Omni-Directional
  • Application: Automotive Vehicle Tracking, Telematics, Robotics
  • Polarization: RHCP, Linear
  • Axial Ratio: 3 to 13 dB
  • Cable: RG-174
  • Frequency: 617 to 2690 MHz
  • Gain: -7.5 to 28 dBi
  • Power: 2 W
  • Efficiency: 17.5 to 61.9 Percent
  • Bands: GPS / GLONASS / BeiDou / Galileo, 5GNR / 4G, 3G/2G, Cat M1/LTE-M & NB-IoT
  • Industry: GNSS
  • VSWR: 2.0:1, 3.0:1
  • Mounting: Adhesive Mount
  • Impedance: 50 Ohms
  • Connectors: SMA, SMA – Male
  • Multi Band: Yes
  • Multi Port: Yes
  • Cable Length: 2 m
  • Dimension: 128 x 76 x 12 mm
  • Height: 12 mm
  • Weight: 130 g
  • Operating Temperature: -40 to 85 Degree C
  • RoHS: Yes
  • Waterproof: IP 67
  • Noise Figure: 3 dB

Courtesy of everything RF
