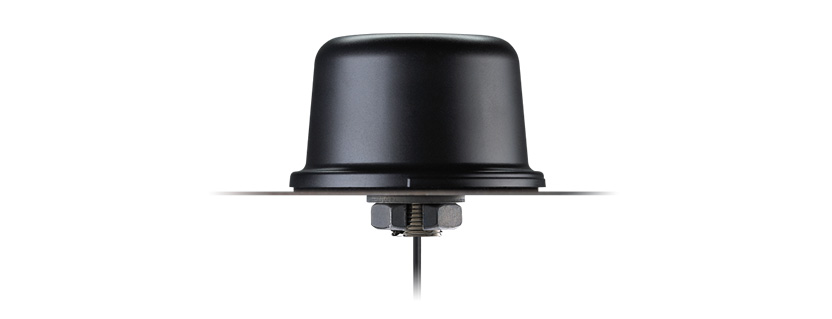

Taoglas QHA.50.A.301111 Colosseum Passive Quad Helix covering all major GNSS bands

Taoglas QHA.50.A.301111 Colosseum Passive Quad Helix covering all major GNSS bands Permanent Mount Robust Enclosure

Taoglas QHA.50.A.301111 Colosseum Passive Quad Helix covering all major GNSS bands

Permanent Mount Robust Enclosure

  • GPS/QZSS (L1/L2)
  • GPS/QZSS/IRNSS (L5)
  • QZSS (L6)
  • Galileo (E1/E5a/E5b/E6)
  • GLONASS (G1/G2/G3)
  • BeiDou (B1/B2a/B2b/B3)

IP67 Rated Waterproof ASA Enclosure

Cable: 3m RG-174

Connector: SMA(M)ST

Dimensions: Ø94 x 57mm

RoHS & REACH Compliant

QHA.50.A.301111 Colosseum Passive Quad Helix

The Colosseum QHA.50.A.301111 is a passive Quad Helix Antenna which has been carefully designed to work across all major GNSS bands, leading to higher location accuracy and stability of tracking in urban environments. The quad-helix antenna design has an eve gain across the hemisphere giving almost perfect Axial Ratio which makes it resilient to multipath rejection.

The QHA.50 is a new passive GNSS external product which has been added to Taoglas’ already extensive High Precision antenna range. The Colosseum QHA.50 covers all major GNSS bands including GPS L1/L2/L5/L6, GLONASS L1/L2/L3, Galileo E5A/E5B/E6, BeiDou B1/B1-2/B2/B3. The QHA.50 is a new passive GNSS external product which has been added to Taoglas’ already extensive High Precision antenna range.

Typical Applications include:

– Agriculture

– Asset Tracking

– Autonomous Driving

The QHA.50, IP67 rated enclosure is manufactured from UV resistant ASA making it an ideal solution for external applications operating in harsh environments.

For Cable runs longer than 3 meters, Taoglas recommends using the Active version of the Colosseum, AQHA.50.A.301111.

The Cable length and connector are fully customizable. For further information please contact us.

Download Datasheet

Courtesy of Taoglas
