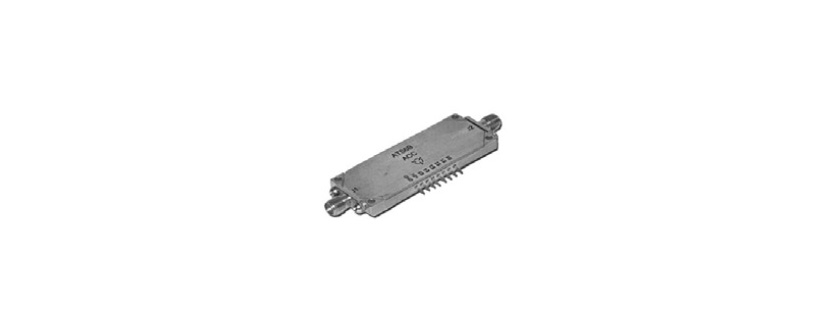

The ATC6B from Cobham Signal & Control Solutions is a PIN Diode Digital Attenuator that operates from 4 to 6 GHz. This 6-bit attenuator provides attenuation of up to 63 dB and has an LSB of 1 dB and an MSB of 32 dB. It has an insertion loss of under 4 dB and a VSWR of less than 2:1. The device requires a single +5V DC power supply and feature TTL-compatible control logic. This attenuator is available in a module with coaxial connectors and is ideal for military and space applications.

Product Details

  • Part Number: ATC6B
  • Manufacturer: Cobham Signal & Control Solutions
  • Description: 6-Bit PIN Diode Digital Attenuator from 4 to 6 GHz

General Parameters

  • Type: Digital
  • Frequency: 4 to 6 GHz
  • Bits: 6 Bit
  • Channels: 1 Channel
  • Configuration: Solid State
  • Attenuation Range: 63 dB
  • Attenuation Step: 1 dB
  • Power: 1 W
  • Insertion Loss: 4 dB
  • Supply Voltage: 5 V
  • VSWR: 2.0:1
  • Package Type: Module with Connectors
  • Dimension: 0.02 x 0.15 Inch
  • Connector: SMA, SMA – Female
  • Control: TTL
  • Grade: Commercial, Military
