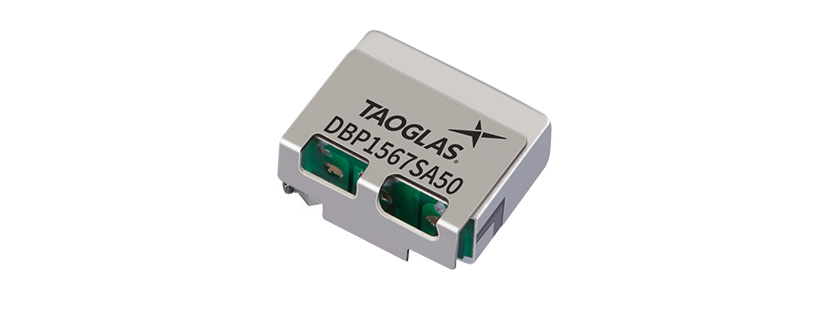

Taoglas Airvu Series Dielectric Band Pass Filter for GPS/GLONASS/BeiDou applications
Airvu Series Dielectric Band Pass Filter for GPS/GLONASS/BeiDou applications, 1567MHz Centre Frequency
- Center Frequency 1567.5MHz
- Bandwidth 95MHz
- Low Insertion Loss
- Band Pass-Band Ripple
- High Ultimate Attenuation
- Dimensions: 9.6*8.6*4 mm
- RoHS & Reach Compliant
Taoglas are utilizing their deep understanding of the RF component design and manufacturing process to provide high-quality, small-form-factor, cost-effective and easy to implement RF filters, known as the Airvu Filter Series. The Taoglas Filters Division will feature a range of off- the-shelf filters for a variety of applications, including filters for emerging license free bands used for GPS/GLONASS/BeiDou applications. We can also work with customers to develop bespoke filter solutions.
Taoglas dielectric filters are designed to be used in wireless transmitters or receivers. These filters are designed to protect the LNA from noisy out of band emissions originated from nearby transmitters that can overdrive, or even damage your LNA. Overdriving the LNA results in non-linear distortion which negatively impacts the sensitivity of your receiver.
By selecting the proper Taoglas filter you can eliminate unnecessary out of band noise while maintaining minimal in-band insertion loss. The filter is manufactured as a single ceramic block [monoblock] which provides high reliability, low insertion loss and high attenuation in a simple compact SMD package.
The DBP.1567.S.A.50 is a standard Taoglas product but can be customized for specific customer needs. For further information please contact your regional Taoglas customer support team.
Courtesy of Taoglas
