BMD-330 RF Module by u-blox AG

BMD-330 RF Module by u-blox AG

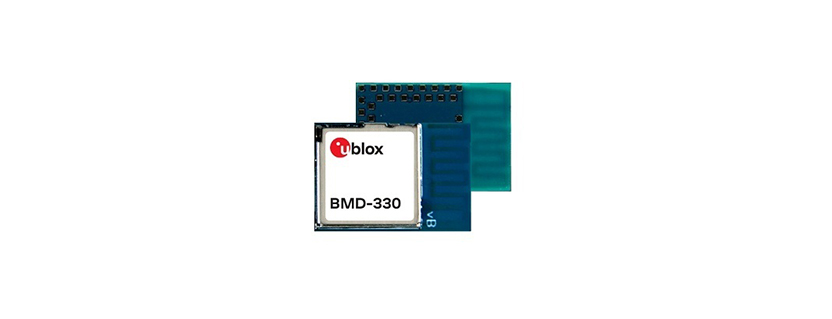

The BMD-330 from u-blox is a Bluetooth 5.0 Low Energy Module with a 200 m range. It is based on the Nordic Semiconductor nRF52810 SoC with an integrated ARM Cortex-M4F 32-bit processor and supports a data rate of up to 2 Mbps. The module delivers a Tx power of up to 4 dBm and has an Rx sensitivity of -96 dBm. It requires a DC supply of 1.7-3.6 V and consumes under 15.4 mA of current in Tx mode and less than 10 mA of current in Rx mode.

The BMD-330 can be controlled via SPI Master/Slave, UART, Two-Wire Master/Slave (I2C), GPIO, PWM and PDM interfaces. It supports serial wire debug (SWD) and has 32-bit Timers & 24-bit Real Time Counters (RTC). The module is available in a package that measures 14 x 9.8 x 1.9 mm with an antenna interface and is ideal for beacons (iBeacon™, Eddystone, AltBeacon, etc.), low-power sensors, fitness devices, wearables, climate control, lighting, safety and security, home appliances, access control, internet of things, home health care, advanced remote controls, smart energy management, low-power sensor networks, interactive entertainment, key fobs, environmental monitoring, hotel automation and office automation applications.

Product Details

  • Part Number: BMD-330
  • Manufacturer: u-blox AG
  • Description: Bluetooth 5.0 LE Module for IoT and Automation Applications

General Parameters

  • Technology: Bluetooth
  • Application: Automotive
  • Frequency: 64 MHz
  • Bluetooth Standards: Bluetooth v5
  • Data Rate: 1 to 2 Mbps
  • Supply Voltage: 1.7 to 3.6 V DC
  • Output Power: 3 dBm
  • Sensitivity: -96 dBm
  • Integrated Antenna: Yes
  • Antenna: Integrated PCB Antenna
  • Interface Type: UART, SPI, TWI, ADC, PWM, GPIO
  • Security: 128-bit AES Encryption
  • Weight: <1 g
  • Mounting Type: Solder pins
  • Dimension: 9.8 x 14 x 1.9 mm
  • Operating Temperature: -40 to 85 Degree C
  • Storage Temperature: -40 to 85 Degree C
  • RoHs: Yes
