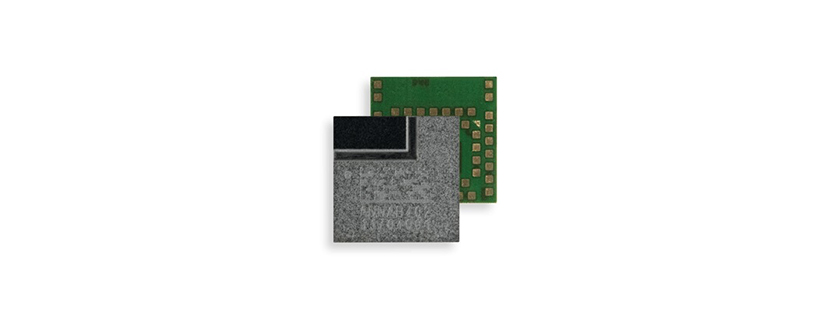

ANNA-B412 RF Module by u-blox AG

ANNA-B412 RF Module by u-blox AG

The ANNA-B412 from u-blox is a Standalone Bluetooth 5.1 LE Module for harsh industrial and lighting applications. It provides a throughput of 800 Kbps and supports up to 8 simultaneous connections. The module has an internal chip antenna for easy integration into end-products as well as an antenna pin for use with an external antenna of choice. It supports a Bluetooth 5 long-range feature to offer an extended communication range with reliable connections. The module is suitable for operation at high ambient temperatures with an operating temperature range from -40°C to +105 °C. It is globally certified for use with the internal or external antenna.

The module uses the u-connectXpress software that provides support for u-blox Bluetooth Low Energy Serial Port Service, GATT client and server, beacons, Bluetooth long range, NFC™, and simultaneous peripheral and central roles. This software allows hosts to easily configure connectivity using AT commands over a UART interface. The module has a secure boot which provides top-grade security which ensures that the modules only boot up with authenticated u-connectXpress software.

The ANNA-B412 is available in an ultra-compact system-in-package (SiP) module that measures 6.5 x 6.5 mm with an integrated antenna. It is suitable for use in industrial automation, smart cities and buildings, medical and healthcare, and telematics. The module can also be used in specific applications which include smart lighting, asset tracking, indoor location, sensors, and wireless-connected and configurable equipment.

Product Details

  • Part Number: ANNA-B412
  • Manufacturer: u-blox AG
  • Description: Standalone Bluetooth 5.1 LE Module for High-Temperature Applications

General Parameters

  • Technology: Bluetooth
  • Application: Industrial automation, Smart buildings and cities, Low power sensors, Wireless-connected and configurable equipment, Point-of-sales, Health devices, Asset tracking, Wearables
  • Bluetooth Standards: Bluetooth v5.1
  • Standard Supported: Bluetooth Low Energy
  • Data Rate: 125 kbps to 2 Mbps
  • Supply Voltage: 1.7 to 3.6 V
  • Current Receiving: 6 mA
  • Current Transmitting: 6 to 15.5 mA
  • Sleep current: 600 nA
  • Output Power: 8 to 11 dBm
  • Sensitivity: -103 to -94 dBm
  • Integrated Antenna: Yes
  • Interface Type: UART, GPIO
  • Security: 128-bit AES encryption
  • Memory: Flash: 512 kB, RAM: 128 kB
  • Chip: nRF52833
  • Package: Ultra compact SiP
  • Weight: 0.1 g
  • Mounting Type: Surface Mount
  • Dimension: 6.5 x 6.5 x 1.2 mm
  • Operating Temperature: -40 to 105 Degree C
  • Storage Temperature: -40 to 105 Degree C
