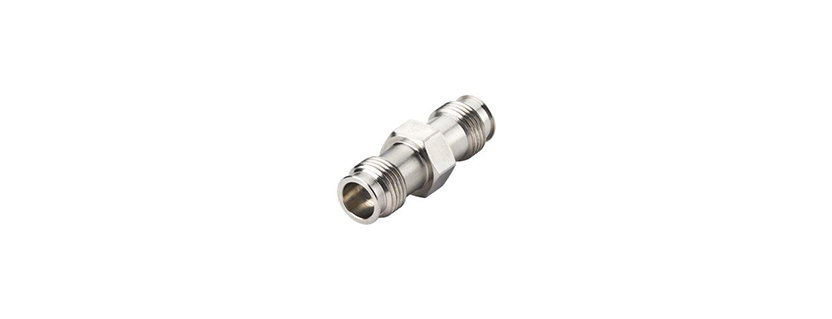

135F-135F+ In Series RF Adapter by Mini Circuits

135F-135F+ In Series RF Adapter by Mini Circuits

135F-135F+ In Series RF Adapter by Mini Circuits

The 135F-135F+ from Mini-Circuits is a 1.35 mm (female) to 1.35 mm (female) Coaxial Adapter that operates from DC to 90 GHz. It has an insertion loss of less than 0.66 dB and a VSWR of better than 1.28:1. This straight adapter is available in a passivated stainless-steel package that measures 6.0 (Dia.) x 17.6 (L) mm and has an operating temperature range of -55°C to +100°C.

Product Details

  • Part Number: 135F-135F+
  • Manufacturer: Mini Circuits
  • Description: 1.35 mm (female) to 1.35 mm (female) Straight Adapter from DC to 90 GHz

General Parameters

  • Connector: 1.35 mm
  • Adapter – Gender 1: Female
  • Adapter – Gender 2: Female
  • Gender: Female-Female
  • Body_Material: Passivated Stainless-Steel
  • Geometry: Straight
  • Impedance: 50 Ohms
  • RoHS: Yes
  • Frequency: DC to 90 GHz
  • Insertion Loss: 0.17 to 0.66 dB
  • Temperature: -55° C to +100° C
