2 GHz TO 21 GHz, Reflectionless Filters, 2.92mm (F) with Internal Stopband Terminations

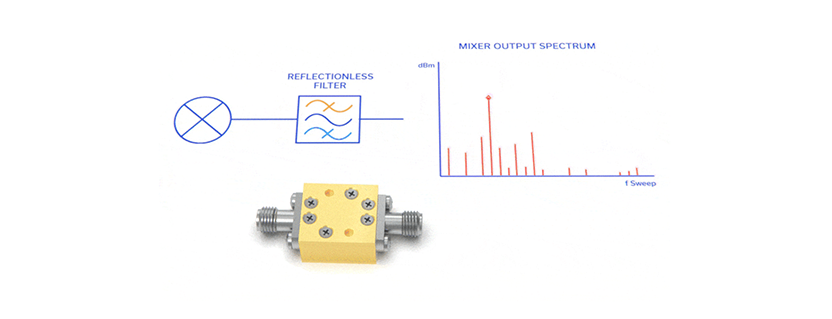

The ZXBF filter series incorporates Mini-Circuitspatented reflectionless filter technology to terminate stopband signals up to 40 GHz internally rather than reflecting them back up the signal chain. ZXBF reflectionless bandpass filters are ideal for use with mixers, multipliers and combline generators to terminate out-of-band spurious signals and harmonics, with rejection up to 60 dB, eliminating the need for additional components such as circulators, isolators, isolation amplifiers or attenuators. ZXBF filters are also cascadable, providing higher attenuation and avoiding standing waves. Excellent temperature stability enables operation near high power components. Look into the ZXBF-seriesfor its broadband, connectorized packages and ease of system integration and test.

Explore ZXBF filters

Key Features:

  • Stopbands up to 40 GHz and rejection up to 60 dB
  • Easily integrated with reflective components, mixers, multipliers
  • Cascadable to increase attenuation and mitigate standing waves
  • Excellent temperature stability
  • Operating Temperature to 105º C
  • Broadband, connectorized package; 2.92mm (F)

Courtesy of Mini-Circuits
