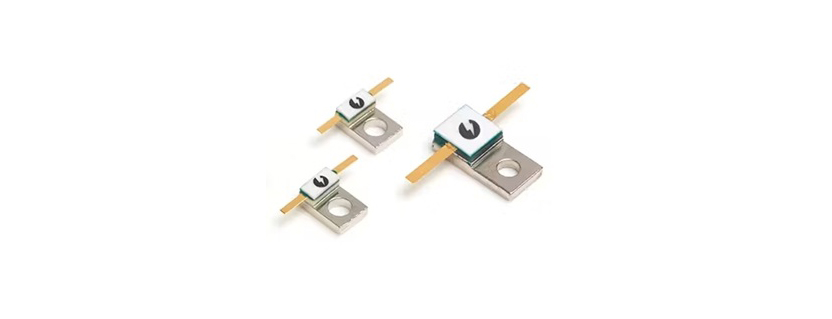

PPA20 Fixed Attenuator by Inmet by Spectrum Control

PPA20 Fixed Attenuator by Inmet by Spectrum Control

PPA20 Fixed Attenuator by Inmet by Spectrum Control

The PPA20 Series from Inmet by Spectrum Control are flanged attenuator that operates from DC to 4 GHz. The attenuators are available with attenuation values from 1 dB to 20 dB and can handle up to 20 W of power. They are matched to 50 Ohms and have a VSWR of 1.5:1. The attenuators are have a BeO substrate, Alumina ceramic cover and Nickel Plated Copper Flanges.

Product Details

  • Part Number: PPA20
  • Manufacturer: Inmet by Spectrum Control
  • Description: DC to 4 GHz Flanged Attenuators Handle up to 20 Watts

General Parameters

  • Frequency: DC to 4 GHz
  • Attenuation: 1 to 20 dB
  • Power: 20 W
  • VSWR: 1.15:1, 1.35:1, 1.50:1
  • Package Type: Surface Mount, Flanged
  • Impedance: 50 Ohms
  • Storage Temperature: -55 to 150 Degrees C
