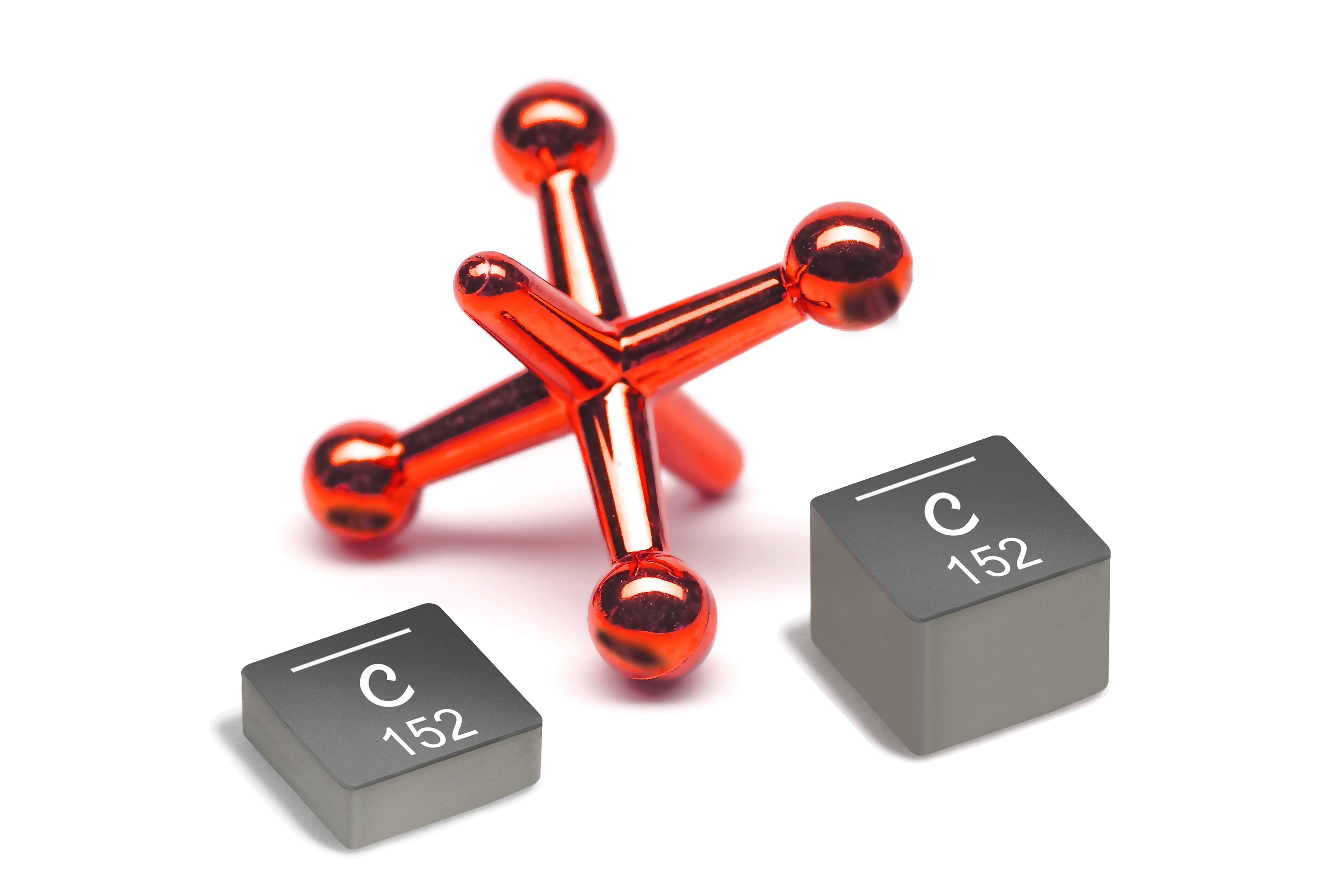

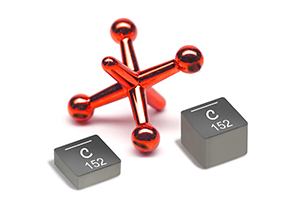

The XEL60xx Family employs a new design which offers extremely low DCR (as low as 1.35 mOhms) and ultra-low AC losses at high switching frequencies (2 to 5+ MHz). It is currently available in two models, the XEL6030 and XEL6060, both featuring lower inductance values which have been fully optimized for high frequency applications. Both series provide superior current handling (up to 41.0 Amps) with soft saturation characteristics to withstand high current spikes.
XEL60xx Family inductors measure just 6.56 x 6.36 mm with maximum heights as low as 3.1 mm, making them ideal for compact DC-DC converters. They feature RoHS compliant tin-silver over copper terminations and are halogen free. They are also qualified to AEC-Q200 Grade 1 standards (-40° to +125°C ambient), making them suitable for automotive and other harsh-environment applications.
As with all Coilcraft parts, free evaluation samples of the XEL60xx Series are available online at www.coilcraft.com. For more information, contact Len Crane, +1-847-639-6400, lcrane@coilcraft.com.
About Coilcraft
Headquartered outside of Chicago in Cary, Illinois, Coilcraft is a leading global supplier of magnetic components including high performance RF chip inductors, power magnetics and filters. In addition to a large selection of standard components, Coilcraft also designs and builds custom magnetics to fit a customer’s exact electrical requirements.
Engineers and buyers consider Coilcraft a preferred supplier because of its reputation for quality, reliable delivery, engineering support and the superior performance of our products. In independent surveys, engineers consistently rank Coilcraft the number one magnetics company they would recommend to a friend.
