CMD273P3 RF Switch by Custom MMIC

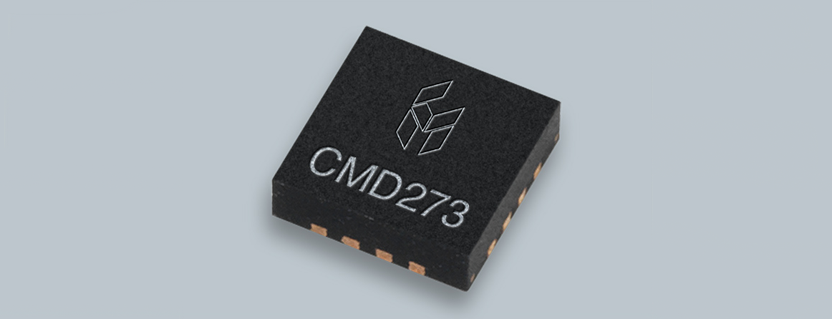

The CMD273P3 from Custom MMIC is a low loss broadband positive control MMIC DPDT transfer switch that operates from DC to 12 GHz (Covering the L, S, C and X Band) . This switch has an insertion loss of 1.7 dB and an isolation of over 42 dB at 6 GHz. It has a control voltage of 0/+5V. The switch can handle a P1dB of up to 25 dBm and has a switching speed of 12 ns. It is available in a RoHS compliant 3 x 3 mm surface mount package. This product can be certified for Space Applications.

Product Details

  • Part Number : CMD273P3
  • Manufacturer : Custom MMIC
  • Description : DC to 12 GHz DPDT Transfer Switch

General Parameters

  • Type : Solid State
  • Configuration : DPDT, Transfer Switch
  • Termination : Absorptive
  • Application Industry : Space
  • Frequency : DC to 12 GHz
  • Insertion Loss : 1.2 to 2.5 dB
  • Isolation : 25 to 42 dB
  • P1dB : 24 to 25 dBm
  • P1dB : 0.25 to 0.32
  • Power : 24 to 25 dBm
  • Power : 0.25 to 0.32
  • IIP3 : 40 to 46 dBm
  • IIP3 (W) : 10 to 39.81 W
  • Peak Power : 27 dBm
  • Supply Voltage : 5 V
  • Supply Current : 5 to 10 uA
  • Control Voltage : 0 to 5 V
  • Switching Speed : 12 ns
  • Impedance : 50 Ohms
  • Package Type : Surface Mount
  • Package : QFN
  • Dimension : 3 x 3 mm
  • Operating Temperature : -40 to 85 Degree C
  • Storage Temperature : -55 to 150 Degree C
  • RoHS : Yes
  • Note : Return Loss : 13 to 15 dB, Band : L Band, S Band, C Band, X Band
