HLX Series Frequency Synthesizer by EM Research

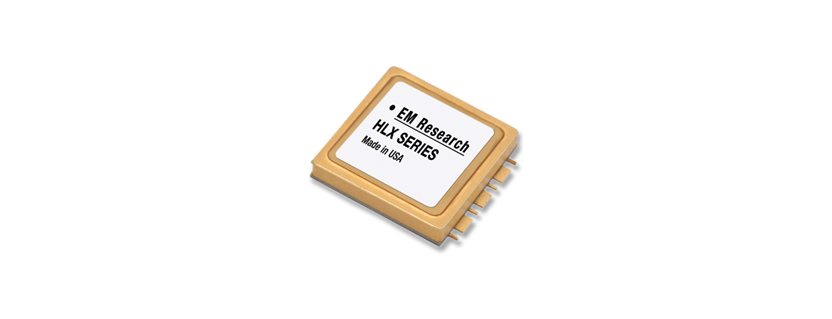

The HLX Series from EM Research are programmable frequency synthesizers that operate from 50 MHz to 12 GHz (In-bands). The synthesizers provide an output power of up to 13 dBm and require an external reference from 5 to 100 MHz. The synthesized signal has a low phase noise with harmonics less than -20 dBc and spurious less than -60 dBc. The synthesizers require a supply voltage of 3.3, 5 Vdc and draw a current of below 100 mA. They are available in a ruggedized, modular-mount package that measures 0.8 x 0.8 x 0.15 inches.

Product Details

    • Part Number : HLX Series
    • Manufacturer : EM Research
    • Description : Programmable Frequency Synthesizers from 50 MHz to 12 GHz

General Parameters

    • Synthesizer Type : Tunable Frequency
    • Frequency : 50 MHz to 12 GHz
    • Bandwidth : 2000 MHz
    • Step Size : 100 KHz
    • Reference Frequency : 5 to 100 MHz
    • Output Power : 13 dBm
    • Harmonics : -20 dBc
    • Spurious : -60 dBc
    • Supply Voltage : 3.3 / 5 V
    • Current : 100 mA
    • Phase Noise : -133 to -80 dBc/Hz
    • Phasenoise 10 KHz : -90 to -80 dBc/Hz
    • Settling Time : 100 µSec
    • External Ref Frequency : 5 to 100 MHz
    • Package Type : Surface Mount
    • Package : 0.8″ square
    • Dimension : 0.8 x 0.8 x 0.15 Inch
    • Operating Temperature : -30 to 70 Degree C

Courtesy of everything RF : HLX Series Frequency Synthesizer by EM Research
