MEQ10-50AU

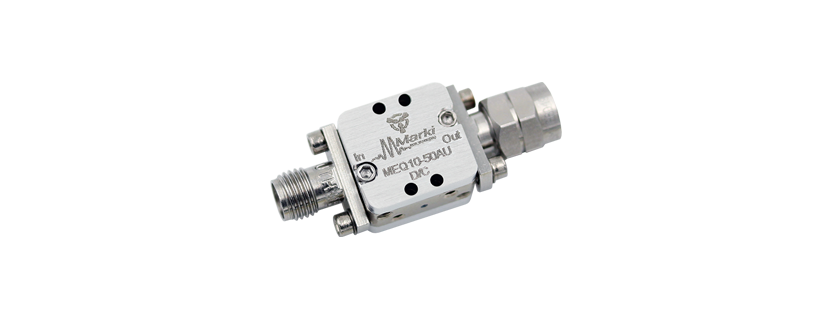

MEQ10-50AU Gain Equalizer by Marki Microwave

The MEQ10-50AU from Marki Microwave is a Gain Equalizer with Frequency DC to 50 GHz, Gain Equalization 10 dB, Insertion Loss 1.8 to 3 dB, Impedance 50 Ohms, Operating Temperature -55 to 100 Degrees C. Tags: Module with Connectors, Positive Gain Slope. More details for MEQ10-50AU can be seen below.

Product Details

      • Part Number : MEQ10-50AU
      • Manufacturer : Marki Microwave
      • Description : 50GHz, Passive GaAs MMIC Equalizer

General Parameters

      • Type : Positive Gain Slope
      • Frequency : DC to 50 GHz
      • Gain Equalization : 10 dB
      • Insertion Loss : 1.8 to 3 dB
      • return_loss : 10 to 15 dB
      • Package Type : Module with Connectors
      • Connector : 2.4 mm, 2.4 mm – Female, 2.4 mm – Male
      • Impedance : 50 Ohms
      • Operating Temperature : -55 to 100 Degrees C
      • Storage Temperature : -65 to 125 Degrees C

Courtesy of everything RF : MEQ10-50AU Gain Equalizer by Marki Microwave
