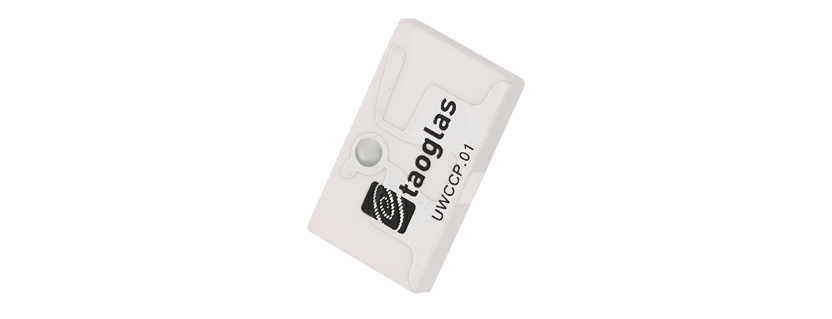

Taoglas Accura

Accura UWB UWCCP.01 6-7 GHz Embedded Circular Polarized SMT Chip Antenna

Taoglas Accura UWB UWCCP.01 6-7 GHz Embedded Circular Polarized SMT Chip Antenna

  • SMD UWB (Ultra Wideband) Chip Antenna
  • For European and USA UWB Applications
  • Operates in Channel 5
  • 6.5dBi Peak Gain
  • Dimensions: 14.3 x 8.35 x 2 mm

The UWCCP.01 chip antenna is a small form factor embedded Ultra-Wideband (UWB) antenna with high efficiencies across the pulsed UWB communications operational channel 5 (6.25 GHz – 6.75 GHz). It is circularly polarized and hence very suitable for use in mobile tags in standard Time of Arrival (ToA) and advanced Angle of Arrival (AoA) localization systems. It is mounted to a PCB via standard SMT reflow process.The UWCCP.01 antenna is a durable ceramic antenna that has a peak gain of 6.5dBi, an efficiency of more than 70% across channel 5 and is designed to be mounted directly onto a PCB. It is an ideal choice for any device maker that needs to keep manufacturing costs down over the lifetime of a product. Like all such antennas, care should be taken to mount the antenna at least 3mm from metal components or surfaces, and ideally 5mm for best radiation efficiency.
