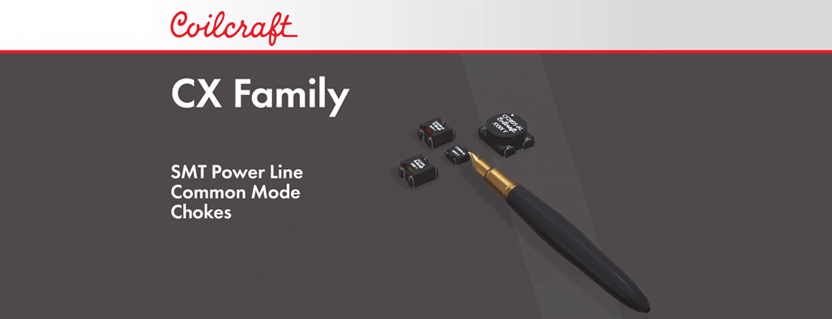

Coilcraft’s new Cx Family of low-profile, toroidal surface-mount common mode chokes includes 16 sizes/configurations for a broad range of power line circuits.

SMT Power Line Common Mode Chokes

  • Solutions for use in a wide array of power line circuits
  • Ideal for use in consumer electronicsand industrial applications
  • Suppression of high frequency common mode noiseup to 100 MHz
  • Up to10 A rms
  • Up to 1500 Vrms Isolation(hipot)
  • Refer to Designing Common Mode Filtersfor design guidance.
  • RoHS-compliant.260°C compatible. Tin-silver-copper over tin over nickel over phos bronze terminations.
Part number
Click for details
Common mode
peak impedance
(kOhms)
Inductance
(mH)
Irms2
(A)
DCR
max
3
(mOhms)
Isolation
(Vrms)
Length
max
(mm)
Width
max
(mm)
Height
max
(mm)
nom min
CV9172-AL 70.01 @ 0.21 MHz 22.0 14.3 0.57 850 1000 16.38 14.22 8.90
CJ5094-CL 28.28 @ 0.26 MHz 10.0 6.5 1.2 180 1000 16.38 14.22 8.90
CE2439L 9.24 @ 1.1 MHz 1.47 0.96 2.5 80.0 1000 19.56 17.02 9.91
CF3094-AL 7.95 @ 2.8 MHz 1.17 0.76 1.1 200 1000 13.0 13.0 5.46
CG3528-AL 6.57 @ 0.98 MHz 3.00 1.95 3.1 42.0 1000 19.56 17.02 9.91
CE1759-AL 5.65 @ 1.8 MHz 0.81 0.52 6.0 14.0 1000 31.0 26.0 13.0
CH4659-AL 4.56 @ 2.5 MHz 0.77 0.50 4.7 40.0 1000 19.56 17.02 9.91
CD1480-BL 4.53 @ 2.2 MHz 1.32 0.85 3.5 60.0 1000 19.56 17.02 9.91
CD1479-AL 4.19 @ 3.0 MHz 0.59 0.38 4.2 20.0 1000 19.56 17.02 9.91
CM6518-AL 4.17 @ 0.90 MHz 1.40 0.91 2.5 60.0 1500 16.38 14.22 8.90
CF2805-AL 3.64 @ 1.9 MHz 0.63 0.40 6.8 14.0 1000 31.0 26.0 12.7
CE1755-AL 3.33 @ 5.8 MHz 0.88 0.57 1.2 130 1000 13.0 13.0 5.46
CG3885-AL 3.11 @ 1.8 MHz 0.47 0.30 10.0 8.0 1000 31.0 26.0 12.7
CR7915-AL 3.10 @ 4.9 MHz 1.12 0.73 2.6 49.5 1500 13.0 13.0 5.60
CF2638L 2.59 @ 4.5 MHz 0.22 0.14 2.9 60.0 1000 19.56 17.02 9.91
CG3333-AL 2.27 @ 3.1 MHz 0.90 0.59 3.7 50.0 1000 19.56 17.02 9.90

Courtesy of Coilcraft
