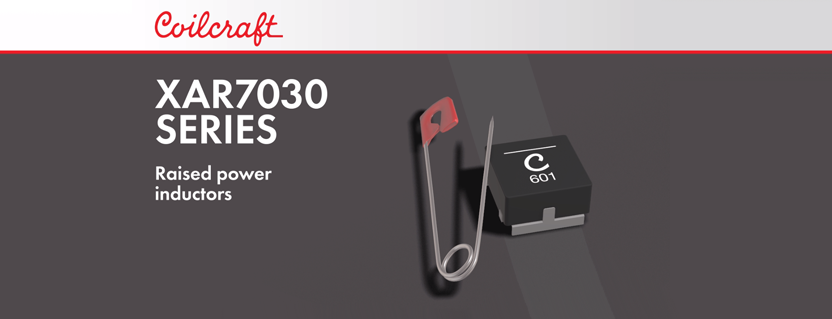

XAR7030 Series Raised Power Inductors

Coilcraft XAR7030 Series Raised Power Inductors

Coilcraft XAR7030 Series Raised Power Inductors

  • Unique off-the-board design provides 1.5 mm clearance for parts to be mounted underneath
  • Excellent current handling – up to 60 A; Exceptionally low DCR – only 1.26 mOhms
  • Magnetically shieldedfor high density applications
  • Soft saturation, perfect for VRM/VRDapplications
  • Composite construction minimizes audible buzzing
  • RoHS-compliant, halogen free.260°C compatible. Matte tin over nickel over phos bronze terminations
  • High current, very low DCR, soft saturation

Core material Composite

Environmental RoHS compliant, halogen free

Terminations RoHS compliant matte tin over nickel over phos bronze

Weight 1.06 g

Ambient temperature –40°C to +165°C with Irms current

Maximum part temperature +125°C (ambient + temp rise)

Storage temperature Component: –55°C to +165°C. Tape and reel packaging: –55°C to +80°C

Resistance to soldering heat Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C / 85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF) 38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging 250/7″ reel; 1000/13″ reel Plastic tape: 16 mm wide, 0.3 mm thick, 12 mm pocket spacing, 4.7 mm pocket depth PCB washing Tested with pure water or alcohol only. For other solvents, see Doc787_PCB_Washing.pdf.
