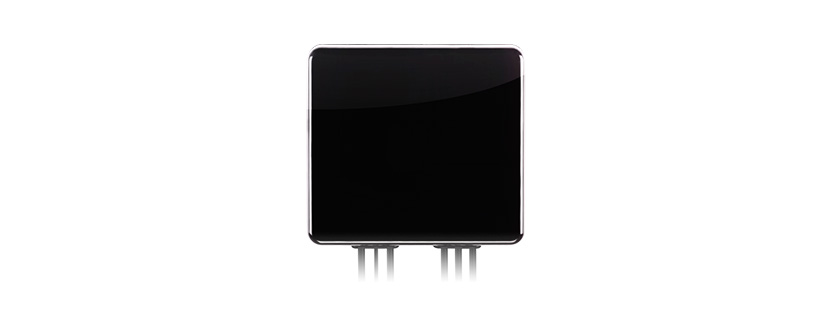

Taoglas MA931

MA931.A.LBICGH.008 Antenna by Taoglas

MA931.A.LBICGH.008 Antenna by Taoglas

The MA931.A.LBICGH.008 from Taoglas is a Antenna with Frequency LTE : 617 to 960 MHz/1710 to 2170 MHz/2490 to 2690 MHz/3300 to 3600 MHz/5150 to 5925 MHz, WiFi : 2.4/5.8 GHz, Gain -5.14 to -1.18 dBi (Average gain), 0.67 to 8.14 dBi (Peak gain), Power 50 W, Operating Temperature -40 to 85 Degree C, Current 135 to 215 mA. Tags: Panel, Low Profile. More details for MA931.A.LBICGH.008 can be seen below.

Product Details

    • Part Number : MA931.A.LBICGH.008
    • Manufacturer : Taoglas
    • Description : 6-in-1 Adhesive Mount MIMO GNSS Antenna from 617 to 5925 GHz

General Parameters

    • Active/Passive : Active
    • Type : Panel, Low Profile
    • Directionality : Omni-Directional
    • Polarization : Linear
    • Standards : GPS, Galileo, GLONASS, BeiDou, 2G, 3G, 4G, LTE, WiFi
    • Frequency : LTE : 617 to 960 MHz/1710 to 2170 MHz/2490 to 2690 MHz/3300 to 3600 MHz/5150 to 5925 MHz, WiFi : 2.4/5.8 GHz
    • Gain : -5.14 to -1.18 dBi (Average gain), 0.67 to 8.14 dBi (Peak gain)
    • Power : 50 W
    • Efficiency : 30.65 to 76.26 %
    • Industry : Cellular / Wireless Infrastructure, WiFi / Bluetooth / ZigBee, GNSS
    • MIMO : Yes
    • Indoor/Outdoor : Indoor, Outdoor
    • Mounting : Adhesive Mount, Wall Mount, Vehicle Mount
    • Impedance : 50 Ohms
    • Connectors : SMA, SMA – Male, RP – SMA, RP – SMA – Male
    • Multi Band : Yes
    • Multi Port : Yes
    • Cable Length : 300 mm
    • Diameter : 146 x 134 mm
    • Dimension : 146 x 134 x 20 mm
    • Height : 20 mm
    • Operating Temperature : -40 to 85 Degree C
    • RoHS : Yes
    • Current : 135 to 215 mA
