MMIQ-0218L RF Mixer by Marki Microwave

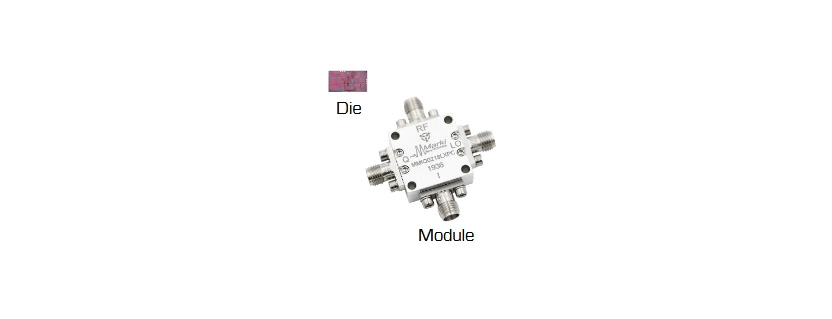

The MMIQ-0218L is a Passive GaAs MMIC IQ Mixer from Marki Microwave with an RF/ LO frequency from 2 to 18 GHz and an IF frequency from DC to 3 GHz. This ultra-broadband mixer has a conversion loss of 8 dB and LO to RF isolation of 58 dB. It provides up to 40 dB of image rejection due to the excellent phase and amplitude balance of its on-chip LO quadrature hybrid. The MMIQ-0218L is available in both wire bondable die and connectorized modules and is suitable for Single Side Band & Image Rejection Mixing, IQ Modulation/Demodulation, Vector Signal Modulation and Demodulation, and Band Shifting applications.

Product Details

• • Part Number : MMIQ-0218L
  • Manufacturer : Marki Microwave
  • Description : Passive GaAs MMIC IQ Mixer from 2 to 18 GHz

General Parameters

• • Type : I/Q Mixer, Image Reject Mixer, Passive Mixer, Single Sideband Mixer
  • RF Frequency : 2 to 18 GHz
  • LO Frequency : 2 to 18 GHz
  • IF Frequency : DC to 3 GHz
  • Image Rejection : 27 dB
  • Conversion Loss : 11 to 15 dB
  • Noise Figure : 12 dB
  • LO Drive – Power : 13 to 20 dBm
  • P1dB : 2 to 5 dBm
  • IP3 : 16 to 18 dBm
  • LO/RF Isolation : 58 dB
  • LO/IF Isolation : 28 dB
  • Amplitude Deviation : 0.5 dB
  • Impedance : 50 Ohms
  • Package Type : Die, Module with Connectors
  • Connector : SMA, SMA -Female
  • Connector IF : SMA -Female
  • Connector LO : SMA -Female
  • Connector RF : SMA -Female
  • Phase Deviation : 5 Degrees
  • Operating Temperature : -55 to 100 Degree C
  • Storage Temperature : -65 to 125 Degree C
  • Grade : Commercial, Military, Space
  • RoHS : Yes
