New high-efficiency power inductors are 75% smaller than previous generation products

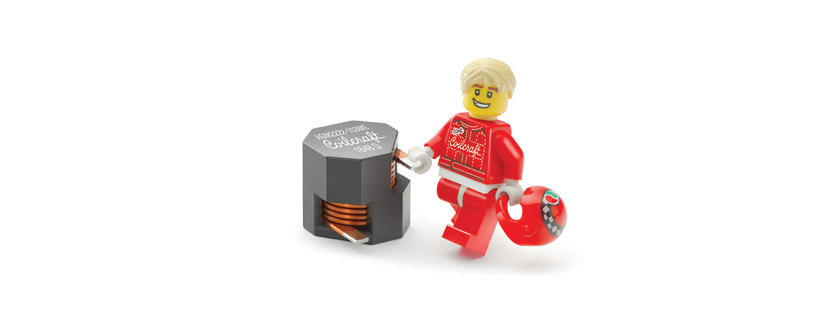

AGM2222 Shielded Power Inductors

• AEC-Q200 Grade 1 (−40°C to +125°C); Ideal for a variety of automotive applications
• 75% smaller than previous generation
• Very low DCR maintains high efficiency
• Soft saturation with high current handling capability
• Magnetic shielding reduces power losses at high frequency
• Ideal for Bi-directional 12 V – 48 V DC-DC converters
• RoHS-compliant. Tin-silver over copper terminations.

Environmental RoHS compliant, halogen free

Terminations RoHS compliant tin-silver over copper

Core material Powdered iron

Weight 46 – 51 g

Ambient temperature –40°C to +125°C with Irms current

Maximum part temperature +165°C (ambient + temp rise)

Storage temperature Component: –40°C to +165°C.

Tray packaging: –40°C to +80°C

Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C / 85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging 42 parts per tray

PCB washing Tested to MIL-STD-202 Method 215 plus an additional aqueous wash.

Courtesy of Coilcraft: Click here to download the datasheet and request free samples!
