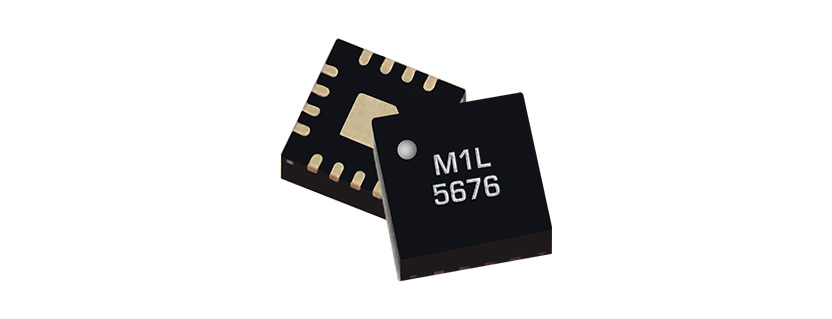

The MM1-2567LSM-2 from Marki Microwave is a RF Mixer with RF Frequency 25 to 67 GHz, LO Frequency 25 to 67 GHz, IF Frequency DC to 30 GHz, Conversion Loss 6.5 to 22 dB, LO Drive – Power 6 to 16 dBm. Tags: Surface Mount, Double Balanced Mixer. More details for MM1-2567LSM-2 can be seen below.

Product Details

      • Part Number : MM1-2567LSM-2
      • Manufacturer : Marki Microwave
      • Description : 25 to 67 GHz GaAs MMIC Double Balanced Mixer

General Parameters

      • Type : Double Balanced Mixer
      • Industry Application : 5G, Electronic Warfare
      • RF Frequency : 25 to 67 GHz
      • LO Frequency : 25 to 67 GHz
      • IF Frequency : DC to 30 GHz
      • Conversion Loss : 6.5 to 22 dB
      • LO Drive – Power : 6 to 16 dBm
      • P1dB : 1 to 5 dBm
      • IP3 : -0.5 to 3 dBm (Output), 9 to 18 dBm (Input)
      • LO/RF Isolation : 40 dB
      • LO/IF Isolation : 28 dB
      • Impedance : 50 Ohms
      • Package Type : Surface Mount
      • Package : QFN
      • Dimension : 3 x 3 mm
      • RoHS : Yes
