Innovative 2 to 18GHz MMIC IQ Mixer Now in SMT

The MMIQ-0218 is the only 2 to 18 GHz IQ mixer available in the world, enabling architectures for electronic warfare that were otherwise impossible. Building on the accomplishment of the 2 to 18 GHz quadrature splitter MQS-0218, the MMIQ-0218 has an impressive 2 to 18 GHz RF/LO bandwidth and DC to 3 GHz IF. The MMIQ-0218LSM provides +5dBm Input P1dB, 27 dB of image rejection, and 58 dB of L-R Isolation with an LO of +17dBm. Our latest release, the MMIQ-0218HSM, increases input P1dB to +13dBm with an LO of +26dBm. Our MMIQ series mixers provide vector modulation, band shifting, SSB and image-reject mixing, and up/downconversion for applications such as radar, EW, test & measurement, and quantum computing. These MMIC IQ mixers are available in surface mount, bare die, and connectorized modules.

Product Page Datasheet RF/LO

[GHz]

IF

[GHz]

LO Drive

[dBm]

Conversion Loss

[dB]

Isolation

L-R

[dB]

Img Rej

[dB]

MMIQ-0218LSM pdf 2 to 18 DC to 3 +14 to +20 8 58 27
MMIQ-0218HSM pdf 2 to 18 DC to 3 +18 to +26 8 53 35

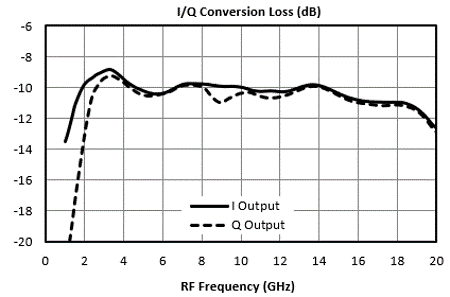

MMIQ-0218HSM:

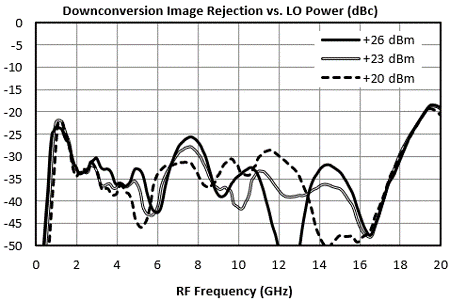

MMIQ-0218HSM:

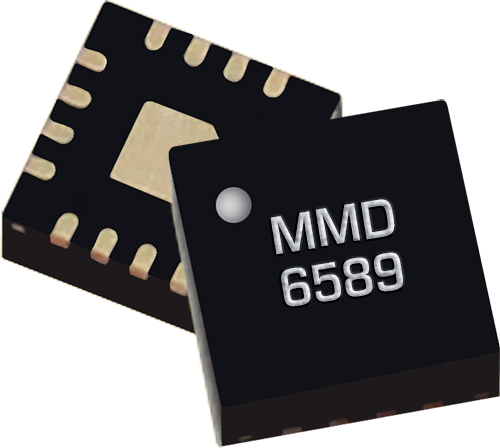

20 to 50 GHz Surface Mount Frequency Doubler for mmWave Applications

Efficient high performance doublers are a smart way to generate mmwave tones for use in frequency sources and LO signal paths. Our new MMD-2050HSM provides outputs from 20 to 50 GHz, and provides superior 33 dBc 1F and 40 dBc 3F suppression in a convenient 3×3 mm surface-mount  QFN. The MMD-2050HSM supports input power of +10 to +15 dBm, and the sister part MMD-2050LSM operates with a low +5 to +10 dBm input. These passive frequency doublers are ideal for a wide range of SATCOM, radar, and 5G applications. For phase-noise sensitive applications drive these doublers with our new APM series low phase noise amplifiers.

Product Page Datasheet Input

[GHz]

Output

[GHz]

Conversion Loss

[dB]

Suppresion F

[dBc]

Suppression 3F

[dBc]

Input Power

[dBm]

 MMD-2050LSM pdf 10 to 25 20 to 50 12.5 34.5 46 +5 to +10
MMD-2050HSM pdf 10 to 25 20 to 50 12.5 33 40 +10 to +15

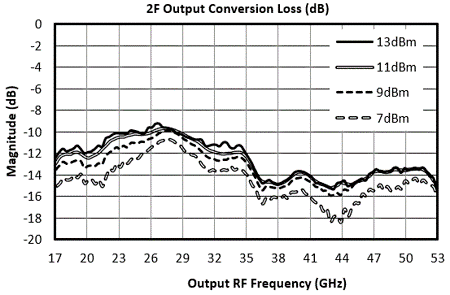

MMD-2050HSM:

IQ, Image Reject, and Single Sideband Mixer Primer

Operation of IQ mixers and quadrature hybrid couplers are among the most difficult concepts for RF and Microwave engineers to understand. Combining these two unlocks wonderful application circuits including band shifters, single-sideband mixers and image reject mixers. These mixers provide advantages in dynamic range (improvements in linearity, reduction in noise) that are not widely recognized.

Following the wide success of our Mixers Basics Primer, Balun Basics Primer, and Power Divider & Directional Coupler Primer, the new IQ, Image Reject, and Single Sideband Mixer Primer from Marki seeks to educate RF and Microwave engineers in the theory, operation, and benefits of using these mixers in advanced system design.

Related Tech Notes:

What happens when you underdrive a mixer?

How to Measure Isolations

How to Measure Spurs (with actual measurements)

How to Test for Intermodulation Distortion

Top 7 Ways to Create a Quadrature (90˚) Phase Shift

Table of IF Hybrids

5 Ways to Compensate for Passive IQ Mixer Imbalance
