Broadband 2 to 22 GHz MMIC Coupler in small SMT package

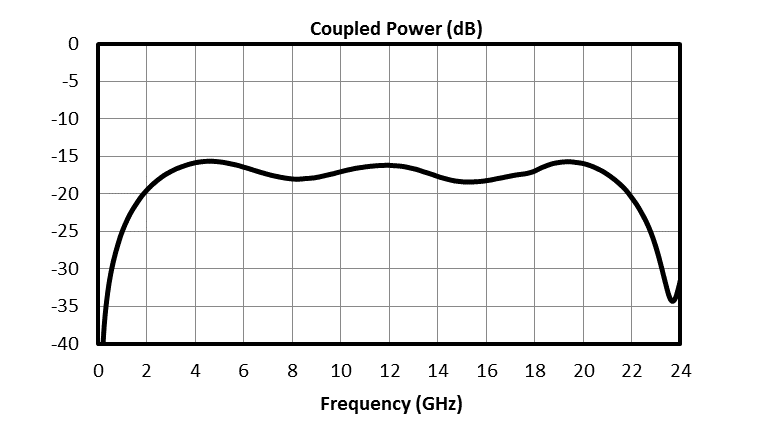

The new MC16-0222SM directional coupler provides a convenient, small, and extremely broadband solution for power detection and other applications that utilize coupled signals. Packaged in a small 4×4 mm QFN, this MMIC solution provides greatly improved repeatability due to the tighter fabrication tolerances over traditional coupler technologies. The direct line supports signals from DC to 22 GHz, with the coupled port providing 16dB coupling from 2 to 22 GHz. Directivity is nominally 19dB across the full bandwidth and exceeds 20dB over portions of the band. Evaluation boards are available and s-parameter files can be downloaded direct from our website or below.



Product Page Datasheet Frequency Band

[GHz]

VSWR Mean Coupling

[dB]

Directivity

[dB]

S-Parameters
MC16-0222SM  pdf 2 to 22 1.22 16 19 MC16-0222SM.zip

MC16-0222SM

MC16-0222SM

2 to 26 GHz MMIC Power Divider with Excellent Return Loss

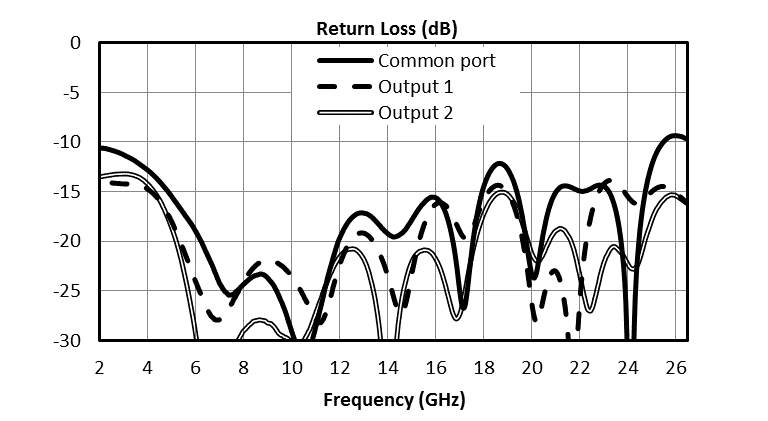

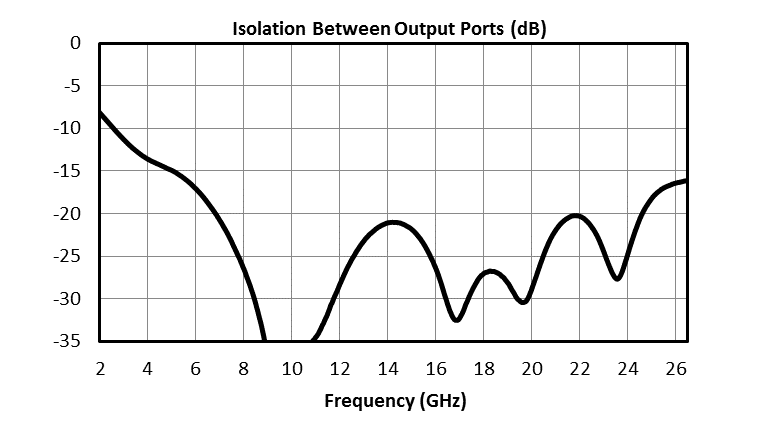

For high performance size-constrained applications requiring power splitting and combining we introduce the MPD-0226SM. Featuring a very wide 2 to 26 GHz bandwidth, this two-way MMIC splitter/combiner offers an exceptional 0.2dB of amplitude balance and 2deg of phase balance. Output port isolation and return loss were optimized for broadband applications that utilize the full 24GHz bandwidth, while offering additional improvement in select narrowband applications such as X-band with >20dB return loss and >25dB isolation. Packaged in a small 4×4 mm QFN, this MMIC solution provides greatly improved repeatability due to the tighter fabrication tolerances over traditional splitter technologies. Evaluation boards are available and s-parameter files can be downloaded direct from our website or below.



Product Page Datasheet Frequency Band

[GHz]

Insertion Loss

[dB]

Amplitude

Balance

[dB]

Phase

Balance

[Degrees]

Isolation

[dB]

S-Parameters

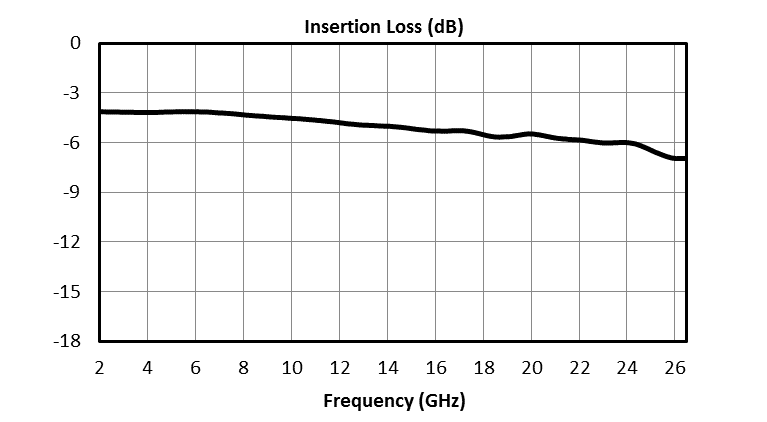

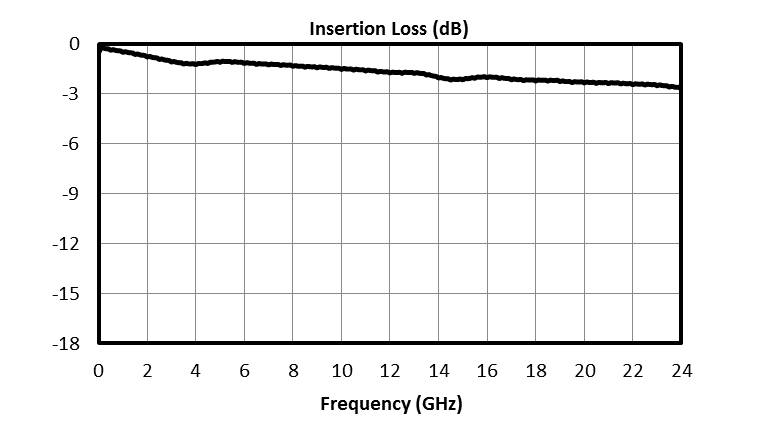

MPD-0226SM   pdf 2 to 26.5 3 0.2 2 20 MPD-0226SM.zip

MPD-0226SM

MPD-0226SM

MPD-0226SM
