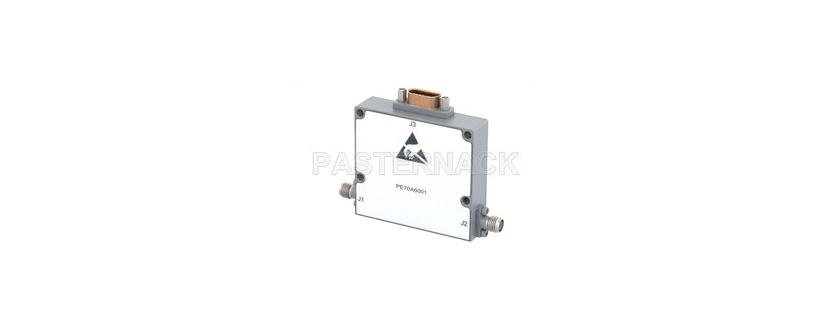

The PE70A6001 from Pasternack Enterprises is a 10-bit Programmable Attenuator that operates from 18 to 40 GHz. This pin diode attenuator provides an attenuation from 0 to 30 dB with a step resolution of 0.03 dB and has a P1 dB of 10 dBm. It has an insertion loss of 6 dB and a VSWR of less than 2.5:1. This attenuator supports TTL logic and is available in a module that measures 50.8 x 45.72 x 12.7 mm with 2.4 mm (F) connectors along with a 15 pin Micro-D female control socket. It is ideal for EW, test and measurement, radar, military & space applications.

Product Details

  • Part Number: PE70A6001
  • Manufacturer: Pasternack Enterprises Inc
  • Description: 10-Bit Programmable Attenuator from 18 to 40 GHz

General Parameters

  • Type: Digital, Programmable
  • Applications: Electronic Warfare, Test & Measurement, Space, Radar
  • Frequency: 18 to 40 GHz
  • Bits: 10 Bit
  • Channels: 1 Channel
  • Configuration: Solid State
  • Attenuation Range: 30 dB
  • Attenuation Step: 0.03 dB
  • Step Size: 0.03 dB
  • Attenuation Accuracy: ±2 dB
  • Power: 0.25 W
  • P1dB: 15 dBm
  • Insertion Loss: 5 dB
  • Switching Time: 1 µs (On), 0.5 µs (Off)
  • Control Voltage: -0.3 to 0.8 V (Bit Off), 2 to 5 V (Bit On)
  • Interface: TTL/Serial/Parallel
  • VSWR: 2.50:1
  • Input VSWR: 2.50:1
  • Package Type: Module with Connectors
  • Dimension: 50.8 x 45.72 x 12.7 mm (L x W x H)
  • Connector: 2.4 mm, 2.4 mm – Female
  • Connector 1: 2.4 mm – Female
  • Connector 2: 2.4 mm – Female
  • Control Interface: TTL
  • Shock: MIL-STD-202F, METHOD 213B COND. B
  • Altitude: MIL-STD-202F, METHOD 105C COND. B
  • Vibration: MIL-STD-202F, METHOD 204D COND. B
  • Operating Temperature: -40 to 85 Degree C
  • Storage Temperature: -65 to 125 Degree C
  • Grade: Military, Space
  • RoHS: Yes
  • Note: Attenuation Flatness : +/-1.5 dB, Power Rating : 24 dBm, Weight : 64.41 g
