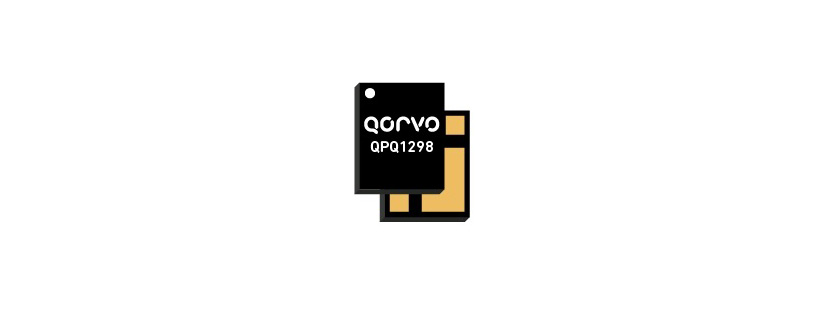

QPQ1298 Band Pass Filter by Qorvo

QPQ1298 Band Pass Filter by Qorvo

QPQ1298 Band Pass Filter by Qorvo

The QPQ1298 from Qorvo is a Band Pass Filter with Frequency 2.515 to 2.675 GHz, Insertion Loss 2.5 to 3.3 dB, Rejection 30 to 50 dB, Power 5.62 W, VSWR 1.8:1 to 2.2:1. Tags: Surface Mount, BAW Filter. More details for QPQ1298 can be seen below.

Product Details

  • Part Number: QPQ1298
  • Manufacturer: Qorvo
  • Description: High-Performance BAW Band Pass Filter from 2.515 to 2.675 GHz

General Parameters

  • Type: BAW Filter
  • Application Industry: Communication, Wireless Infrastructure
  • Application: LTE, Small Cell, Repeater
  • Features: 160 MHz Bandwidth – Band 41, High Attenuation, Excellent Wi-Fi Rejection, Low Loss
  • Frequency: 2.515 to 2.675 GHz
  • Insertion Loss: 2.5 to 3.3 dB
  • Rejection: 30 to 50 dB
  • Power: 5.62 W
  • VSWR: 1.8:1 to 2.2:1
  • Impedance: 50 Ohms
  • Package Type: Surface Mount
  • Dimension: 2.00?x?1.60?x?0.715 mm
  • Operating_Temperature: -40 to 95 Degree C
  • Storage_Temperature: -40 to 125 Degree C
  • Grade: Commercial
  • RoHS: Yes
  • Note: Amplitude Variation – 1.4 to 2.0 dB, Harmonics – 70 to 79 dBc
