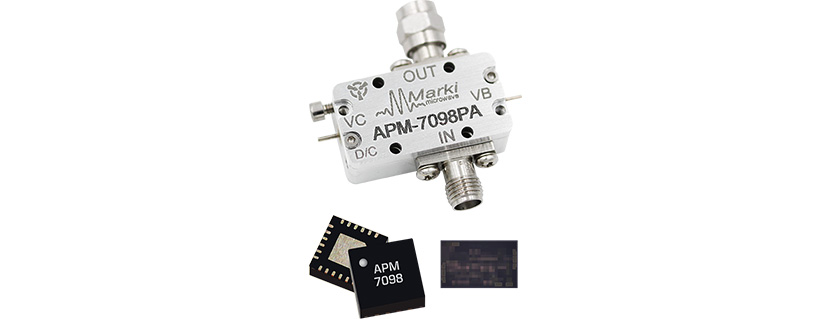

Marki Microwave latest broadband low phase noise amplifiers extend down to 10 MHz providing the ideal gain stage to boost your low phase noise LO tone. The new 100MHz-22GHz APM-7098 and 10MHz-22GHz  APM-7099 feature a very low -165dBc/Hz phase noise at 10kHz and operate from a convenient positive supply. The low frequency capability and high +26dBm output power from our APM-7099 ensures compatibility and optimal performance from Marki NLTL comb generator products such as NLTL-6794SM, while both amplifiers are excellent LO drivers for our Tlow 3 and MT3 series of high linearity mixers. When operated in compression, the fast rising edge of the output waveform of our APM-7098/7099 increases the output efficiency of our Schottky diode based NLTL comb generators, and improves IP3 and spurious performance of our proprietary T3 and MT3 mixers. The APM-7098/7099 are available today as wire-bondable bare die or a connectorized module, and the APM-7098SM/APM-7099SM are offered in a 4x4mm QFN surface mount package. All APM amplifiers are designed with low residual phase noise which is a critical requirement for noise-sensitive applications such as radar receivers, frequency source design, or digital transmission using complex modulation schemes.



Product Page Datasheet Frequency Band

[GHz]

Gain

[dB]

Saturated Output Power

[dBm]

Phase Noise @ 10kHz offset

[dBc/Hz]

Current @ 8V/7V

[mA]

APM-7098

APM-7098SM

pdf

pdf

0.1 to 22 15 +23 -165 48
APM-7099

APM-7099SM

pdf

pdf

0.01 to 20 14 +25 -167 48



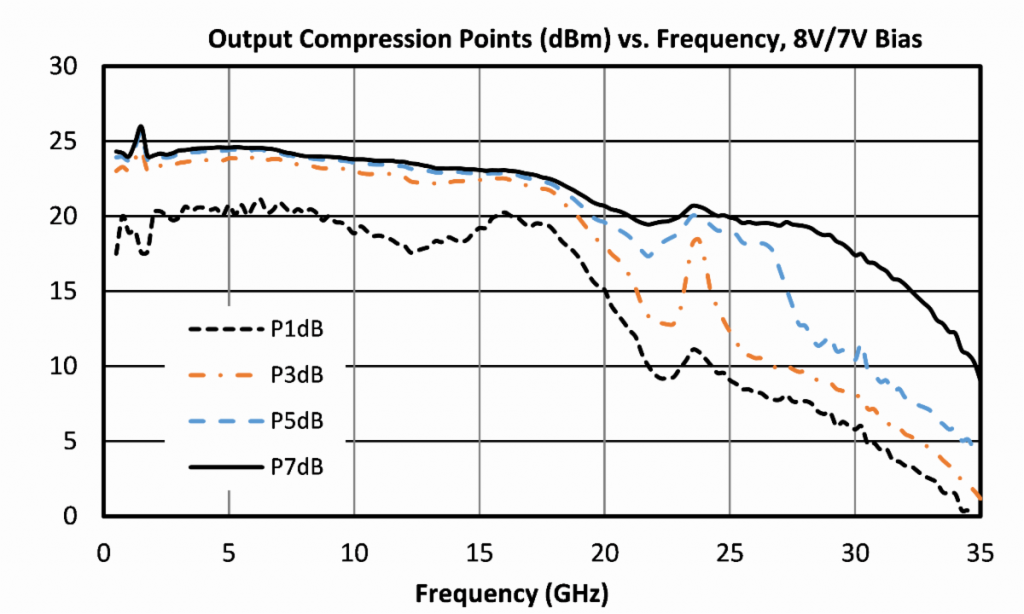

APM-7098CH/PA:

NLTL Comb Generators

Non-Linear Transmission Lines (NLTL) are a superior method of comb generation compared to SRDs featuring lower residual phase noise, lower required input power, and higher harmonic generation. Learn more:

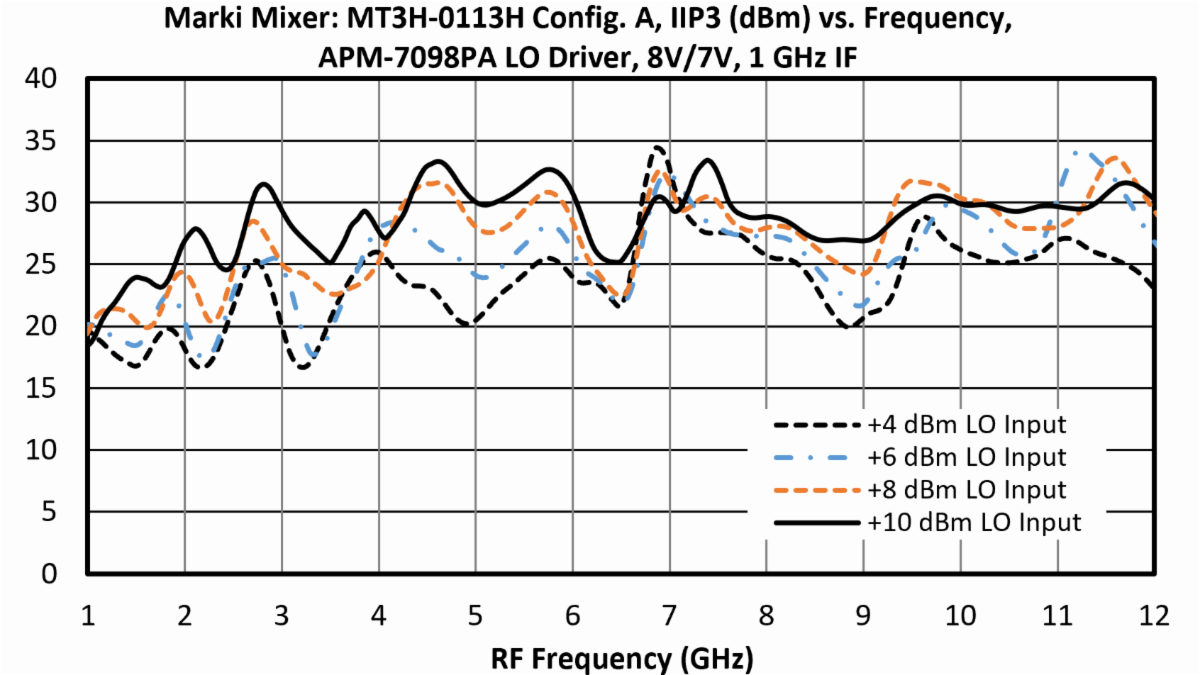

T3 and MT3 Mixers

The T3 mixer is the most advanced mixer circuit available in the world. Learn more:

Low Phase Noise

Low residual phase noise is a critical parameter for many applications. Learn how amplifiers contribute phase noise, how to conduct a proper phase noise test of your component, and check out our latest low phase noise APM Series amplifiers.
