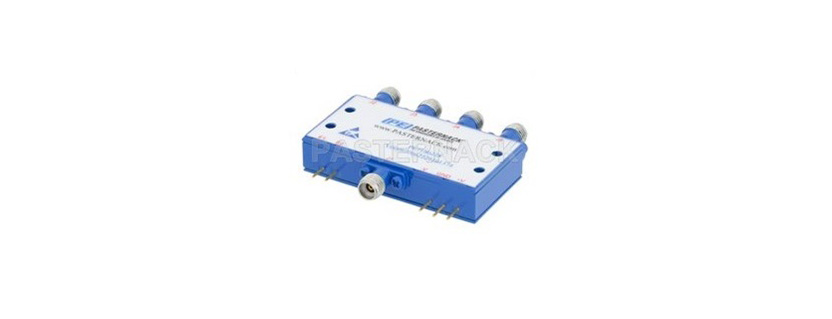

The PE71S6228 from Pasternack is a Reflective SP4T Pin Diode Switch that operates from 0.5 to 40 GHz. It has an insertion loss of 7.5 dB, isolation of more than 55 dB, and a switching speed of less than 50 microseconds. This switch can handle up to 0.1 W of CW input power while operating over a dual DC supply of +5 V and -5 V and consuming 250 & 100 mA of current respectively.

The switch is available in a module that measures 2 x 1 x 0.4 inches with 2.92 mm female connectors and supports TTL control logic. This SPDT switch is designed to meet MIL-STD 202F environmental test conditions which include humidity, shock, vibration, altitude, and temperature cycle and is ideal for SATCOM, military & commercial communications, RF test stations, wireless communications, and test & measurement applications.

Product Details

  • Part Number: PE71S6228
  • Manufacturer: Pasternack Enterprises Inc
  • Description: Reflective SP4T Pin Diode Switch from 0.5 to 40 GHz

General Parameters

  • Type: Solid State
  • Configuration: SP4T
  • Termination: Reflective
  • Application Industry: SATCOM, Test & Measurement, Wireless / Communication
  • Frequency: 0.5 to 40 GHz
  • Insertion Loss: 7.5 dB
  • Isolation: 55 dB
  • Power: 20 dBm
  • Power: 100 mW
  • Peak Power: 1 W
  • Supply Voltage: -5 to 5 V
  • Supply Current: 100 to 250 mA
  • Switching Speed: 50 ns
  • Control: TTL
  • Impedance: 50 Ohms
  • Package Type: Module with Connectors
  • Dimension: 2 x 1 x 0.4 inch (L x W x H)
  • Connectors: 2.92 mm, 2.92 mm – Female
  • Technology: PIN Diode Switch
  • Operating Temperature: -40 to 85 Degree C
  • Storage Temperature: -55 to 125 Degree C
  • Tags: PIN Diode Switches – Pasternack
  • Grade: Commercial, Military, Space Qualified
  • Note: Weight :- 47.17 g,
