New Surface Mount 14-53 GHz Mixer Offers Industry Leading Isolation for 5G Applications

Marki Microwave New Surface Mount 14-53 GHz Mixer Offers Industry Leading Isolation for 5G Applications

Marki Microwave New Surface Mount 14-53 GHz Mixer Offers Industry Leading Isolation for 5G Applications

The MM1-1453 offers beautiful balance in an optimized surface mount package, leading to exceptional isolations and spurious suppression. In fact our expanding lineup of mmwave SMT products, now up to an incredible 67 GHz, has enabled a wide range of new applications in 5G, SATCOM, and defense. MM1-1453HSM offers an ultrawide LO/RF of 14 to 53 GHz and wide IF DC to 22 GHz. High 52dB of L-to-R isolation and high spurious suppression provide world-class performance. This double-balanced mixer is offered in two diode options, L or H, depending on your available LO drive and desired linearity. For example, MM1-1453LSM can be operated with as low as +7dBm LO drive level. Speaking of LO drive, the AMM-6702SM is an excellent driver amp for this mixer, and there are more on the way! MM1-1453LSM and MM1-1453HSM are offered in 4x4mm QFN. Evaluation boards are also available.

Product Page Datasheet Frequency Band

[GHz]

IF

[GHz]

LO Drive

[dBm]

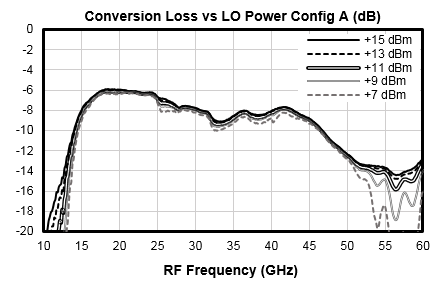

Conversion Loss

[dB]

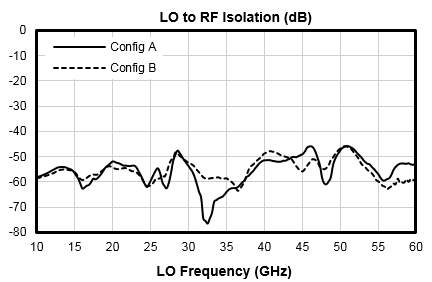

Isolation L-R

[dB]

IIP3

[dBm]

MM1-1453LSM  pdf 14 to 53 0 to 22 +7 to +15 8 56 13
MM1-1453HSM  pdf 14 to 53 0 to 22 +12 to 20 7.6 52 17



MM1-1453LSM

SMT mmWave Amplifiers to 57 GHz

We’re excited to share preliminary data on an upcoming lineup of high performance millimeter wave surface mount amplifiers for signal and LO path applications! When driven into saturation the AMM series amplifiers provide clean, stable, and power efficient amplification of your reference oscillator for driving our industry-leading mixer and IQ mixer products. Comprehensive packaging R&D enabled our latest mmwave amplifiers to be offered in tiny 3x3mm QFNs, working up to an incredible 57GHz.

All products are in pre-release status (with the exception of AMM-6702CH/UC/SM).

Click here to be the first to know when these pre-releases are available.

Product Datasheet Frequency Band

[GHz]

Gain

[dB]

NF

[dB]

OP1DB

[dBm]

OIP3

[dBm]

PSAT

[dBm]

AMM-6702SM pdf 20 to 55 24 6.5 15 21 19
AMM-7199SM pre-release 11 to 38 18 6.1 18 30 20
AMM-7200SM pre-release 17 to 46 16 6.9 18 30 20
AMM-7120SM pre-release 22 to 57 12 7.2 18 26 18

Courtesy of Marki Microwave
