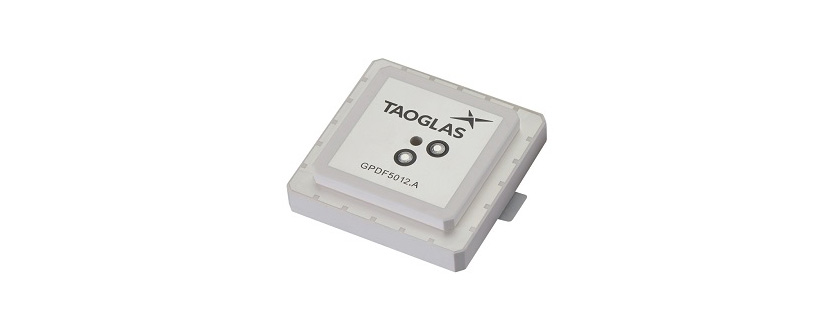

The GPDF5012.A from Taoglas is a Multiband High-Precision GNSS Stacked Patch Antenna that operates from 1176.45 to 1602 MHz. It provides excellent positional accuracy and supports GPS (L1/L2/L5), IRNSS (L5), QZSS (L1/L2C/L5), Galileo (E1/E5a/E5b), GLONASS (G1/G2/G3), and BeiDou (B1/B2a/B2b) bands. This right hand circularly polarized antenna delivers gain at Zenith of 4.44 dBi with an efficiency of up to 68.6% and has an axial ratio of 1.46 dB. It provides an even gain across the hemisphere and has a good axial ratio, which in turn makes it extremely resilient to multipath rejection and offers excellent phase center stability. The antenna measures 50 x 50 mm and has an I-PEX MHFI connector. It is ideal for autonomous driving, precision positioning for robotics, precision agriculture, telematics & container/asset tracking, and timing accuracy synchronization applications.

Product Details

  • Part Number: GPDF5012.A
  • Manufacturer: Taoglas
  • Description: High-Precision GNSS Stacked Patch Antenna from 1176.45 to 1602 MHz

General Parameters

  • Active/Passive: Passive
  • Application Type: Autonomous Driving, Robotics, Telematics, Asset Tracking
  • Type: Patch
  • Frequency Bands: L1, L2, L5, G1, G2, G3, E1, E5a, E5b, B1, B2a, B2b
  • Frequency: 1176.45 to 1602 MHz
  • Gain: 090 to 4.44 dB
  • Constellation: BEIDOU, Galileo, GLONASS, GPS, IRNSS, QZSS, SBAS, NavIC
  • Efficiency: 27.6 to 68.6 %
  • VSWR: 1.50:1
  • Impedance: 50 Ohms
  • Diameter: 50 mm
  • Dimension: 50 x 50 x 12 mm
  • Directionality: Omni-Directional
  • Length: 12.5 mm
  • Polarization: RHCP
  • Weight: 86 g
  • Axial Ratio: 1.46 to 1.03 dB
  • Operating Temperature (°C): -40 to 85 Degree C
  • Note: Group Delay : 2.5 to 6 ns
