1512SP / 2712SP Series Mini Air Core Inductors

  • Q factors up to 100 at 150 MHz
  • Wide range of standard EIA inductance values from 2.5 to 150 nH with tolerances as low as 2%
  • Tight tolerance can eliminate circuit tuning
  • Acrylic jacket provides a flat top for pick and place
  • Solder coated leads ensure reliable soldering

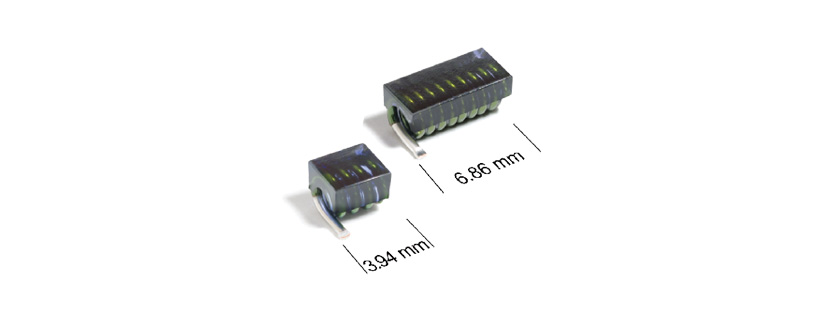

  • Available in two sizes: 4.45 × 3.94 × 3.15 mm and 6.86 × 4.45 × 3.15 mm
  • Small air core inductors feature high Q and tight tolerances
  • Designer’s Kit C501 contains 10 of each part

Terminations RoHS compliant tin-silver over copper. Other terminations available at additional cost.

Ambient temperature –40°C to +125°C with Irms current, +125°C to +140°C with derated current

Storage temperature Component: –40°C to +140°C. Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Temperature Coefficient of Inductance (TCL) +5 to +70 ppm/°C

Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C / 85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

One per billion hours / one billion hours, calculated per Telcordia SR-332

PCB washing Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. See Doc787_PCB_Washing.pdf

Courtesy of Coilcraft
