Coilcraft New ceramic wirewound chip inductors provide the highest Q factors available in an 0603 package

New Coilcraft ceramic wirewound chip inductors provide the highest Q factors available in an 0603 package

New Coilcraft ceramic wirewound chip inductors provide the highest Q factors available in an 0603 package

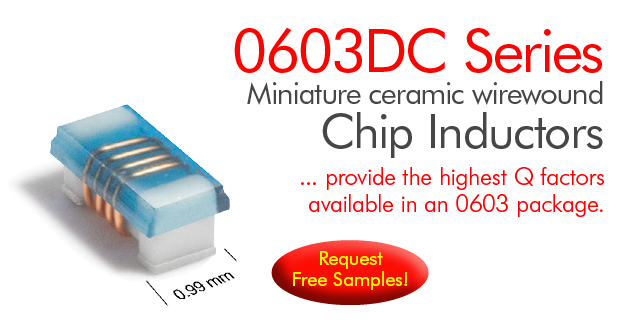

  • Exceptionally high Q – up to 177 at 2.4 GHz!
  • Self-resonant frequencies as high as 11.4 GHz
  • 45 inductance values ranging from 2.7 to 470 nH
  • AEC-Q200 Grade 1 (−40°C to +125°C)

Core material Ceramic

Environmental RoHS compliant without exemption, halogen free

Terminations RoHS compliant matte tin over nickel over silverplatinum-glass frit.

Weight 3 – 4 mg

Ambient temperature –40°C to +125°C with Irms current

Maximum part temperature +140°C (ambient + temp rise).

Storage temperature Component: –40°C to +140°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Temperature Coefficient of Inductance (TCL) +25 to +125 ppm/°C

Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C / 85% relative humidity)

Mean Time Between Failures (MTBF) 1 billion hours

Packaging 2000 per 7” reel; Paper tape: 8 mm wide, 0.95 mm thick, 4 mm pocket spacing

PCB washing Tested to MIL-STD-202 Method 215 plus an additional aqueous wash.
