Marki Microwave Monolithic T3 Mixer and LO Driver Amplifier on a Single Chip

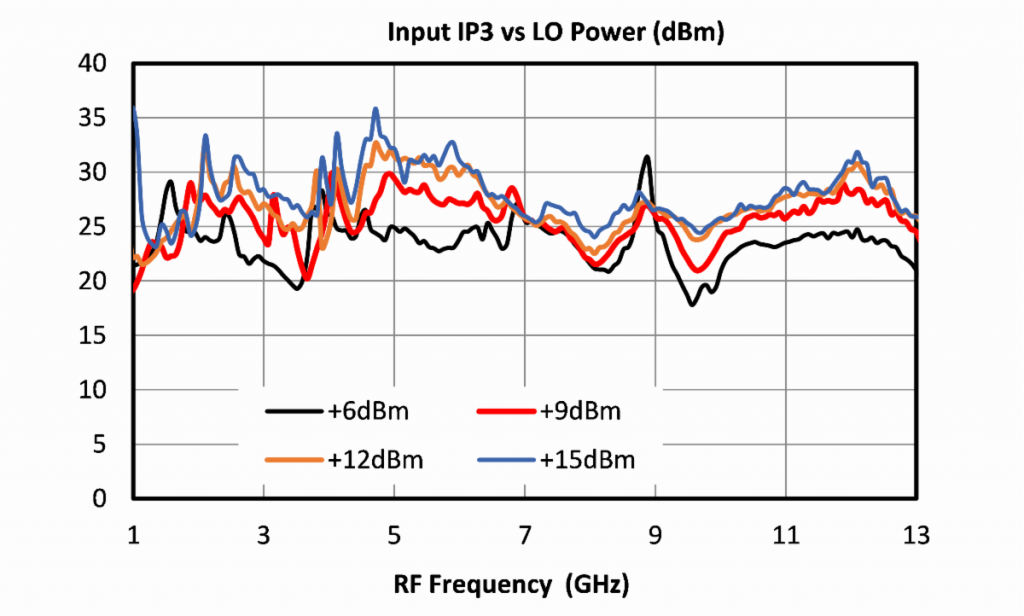

Are you being asked to design smaller and smaller frequency converters, while also increasing the number of channels? That’s why we designed the MT3A-0113H. We’ve combined our legendary high linearity T3 mixer with our low phase noise LO driver amplifier to provide the ultimate combination of performance and size. This triple-balanced mixer provides an LO/RF bandwidth of 1GHz to 13GHz, and an overlapping IF bandwidth spanning 500MHz to 8.5GHz. The MT3A-0113H only requires +6dBm LO input for high linearity, and with increased LO can achieve up to +30dBm IIP3. Available as wire-bondable die or connectorized package.

MT3A-0113H: RF/LO 1 to 13 GHz | IF .5 to 8.5 GHz | LO Drive +3 to +15 dBm | CL 9.5 dB | IIP3 +28 dBm

MT3A-0113H

Courtesy of Marki Microwave
