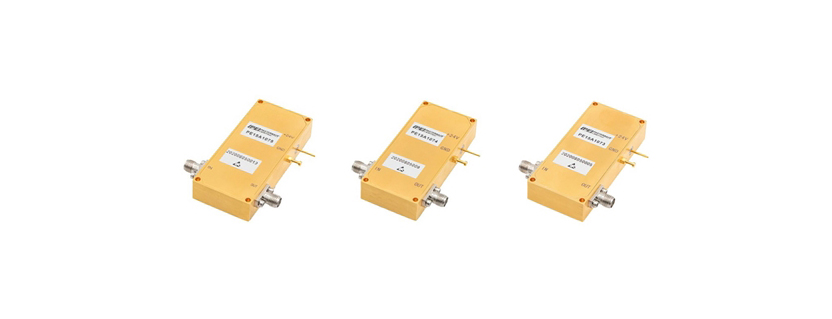

Pasternack RF Amplifiers - PE15A Series

Pasternack RF Amplifiers – PE15A Series

Pasternack RF Amplifiers – PE15A Series



Pasternack Enterprises Inc – PE15A1075

RF Amplifier from Pasternack Enterprises Inc

Description: 25 dBm, GaN Low Noise Amplifier from 1 to 7 GHz

Industry Application: Aerospace & Defense, Military, Commercial, SATCOM

Configuration: Module with Connector

Type: Low Noise Amplifier

Sub-Category: GaN Amplifier

Frequency: 1 to 7 GHz

Noise Figure: 1.5 to 3.3 dB

Pulsed/CW: Pulsed

P1dB: 20 to 22 dBm

Saturated Power: 0.16 to 0.32 W

IP3: 31 dBm



Pasternack Enterprises Inc – PE15A1074

RF Amplifier from Pasternack Enterprises Inc

Description:27 dBm, GaN Low Noise Amplifier from 1 to 23 GHz

Industry Application: Aerospace & Defense, Military, Commercial, SATCOM

Configuration: Module with Connector

Type: Low Noise Amplifier

Sub-Category: GaN Amplifier

Frequency: 1 to 23 GHz

Noise Figure: 3.5 to 8 dB

Pulsed/CW: Pulsed

P1dB: 20 dBm

Saturated Power: 0.2 to 0.50 W

IP3: 32 dBm



Pasternack Enterprises Inc – PE15A1073

RF Amplifier from Pasternack Enterprises Inc

Description:25 dBm, GaN Low Noise Amplifier from 5 to 13 GHz

Industry Application: Aerospace & Defense, Military, Commercial, SATCOM

Configuration: Module with Connector

Type: Low Noise Amplifier

Sub-Category: GaN Amplifier

Frequency: 5 to 13 GHz

Noise Figure: 1.8 to 3.5 dB

Pulsed/CW: Pulsed

P1dB: 19 to 22 dBm

Saturated Power: 0.32 W

IP3: 31 dBm



Courtesy of everything RF
