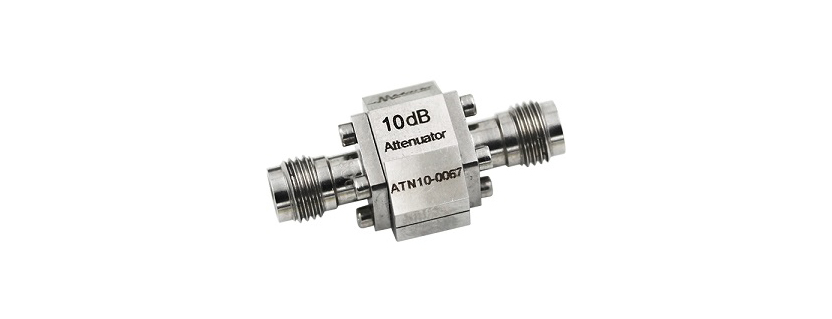

ATN10-0067 Fixed Attenuator by Marki Microwave

ATN10-0067 Fixed Attenuator by Marki Microwave

ATN10-0067 Fixed Attenuator by Marki Microwave

The ATN10-0067 from Marki Microwave is a Fixed Attenuator with Frequency DC to 67 GHz, Attenuation 10 to 10.5 dB, Power 2 W, Weight 15.2 g, Attenuation Accuracy ±0.3 to ±0.5 dB. Tags: Connectorized. More details for ATN10-0067 can be seen below.

Product Details

  • Part Number: ATN10-0067
  • Manufacturer: Marki Microwave
  • Description: GaAs MMIC Attenuator from DC to 67 GHz

General Parameters

  • Frequency: DC to 67 GHz
  • Attenuation: 10 to 10.5 dB
  • Power: 2 W
  • Package Type: Connectorized
  • Connector: 1.85 mm, 1.85 mm – Female
  • Weight: 15.2 g
  • Applications: 5G, Automotive Radar, Test & Measurement, Wireless Backhaul, Wireless Infrastructure
  • Grade: Commercial, Military
  • Impedance: 50 Ohms
  • RoHS: Yes
  • Attenuation Accuracy: ±0.3 to ±0.5 dB
  • Operating Temperature: -55 to 100 Degree C
  • Storage Temperature: -65 to 125 Degree C
  • Note: Return Loss : 22 to 27 dB
