Marki Microwave New DC-14GHz Gain Block Amplifiers

Marki Microwave New DC-14GHz Gain Block Amplifiers

Marki Microwave New DC-14GHz Gain Block Amplifiers

Introducing Marki Microwave’s first MMIC gain blocks, the AKA series of InGaP HBT amplifiers with a bandwidth of DC to 14 GHz. Four options are available with gain from 13 to 19dB, P1dB up to +16dBm, and operating at a low 50mA from a single positive supply. These amplifiers are packaged as a small 0.40 x 0.43 mm wire-bondable chip, form-fit compatible with obsolete InGaP gain blocks from other vendors.

AKA-1300: Datasheet | Freq Band DC-14GHz | Sm Signal Gain 13dB| Noise Fig 5dB | OP1dB +14dBm | OIP3 +28dBm | +3.8V, 50mA

AKA-1310: Datasheet | Freq Band DC-14GHz | Sm Signal Gain 13dB | Noise Fig 5dB | OP1dB +14dBm | OIP3 +28dBm | +4.6V, 50mA

AKA-1400: Datasheet | Freq Band DC-14GHz | Sm Signal Gain 17dB | Noise Fig 4dB | OP1dB +15dBm | OIP3 +28dBm | +3.8V, 50mA

AKA-1500: Datasheet | Freq Band DC-14GHz | Sm Signal Gain 19dB | Noise Fig 4dB | OP1dB +16dBm | OIP3 +28dBm | +4.2V, 50mA

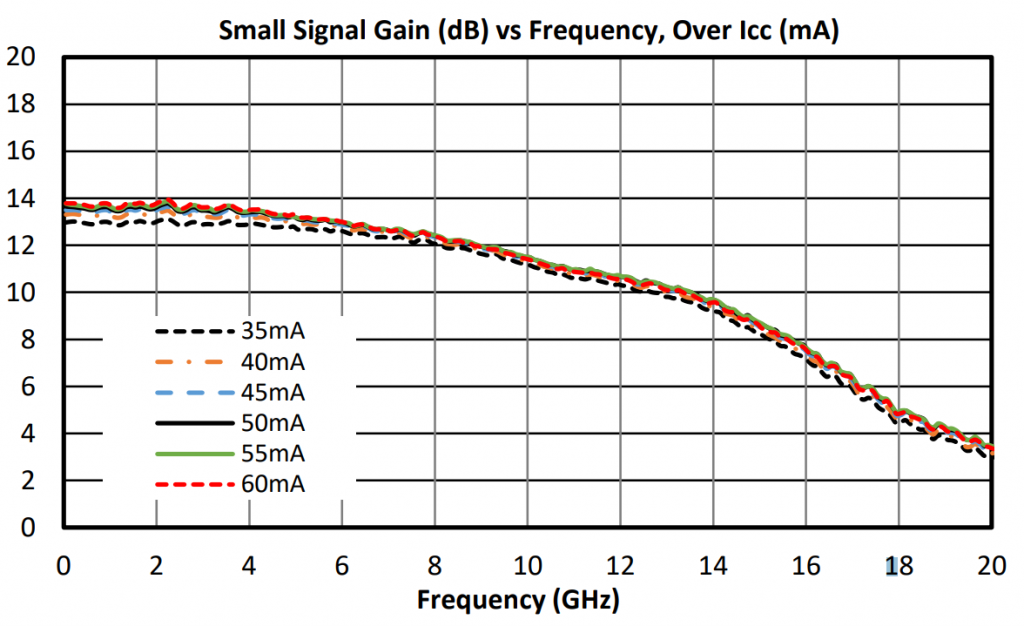

AKA-1300:

Courtesy of Marki Microwave
