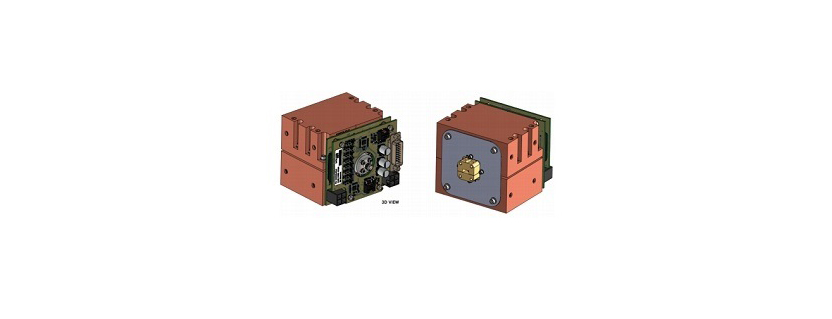

QPB2731N RF Amplifier by Qorvo

The QPB2731N from Qorvo is a RF Amplifier with Frequency 27 to 31 GHz, Power Gain 13.6 dB, Small Signal Gain 22.4 dB, Linear Power 50 to 50.4 dBm, Linear Power 100 to 109.64 W. Tags: Power Amplifier. More details for QPB2731N can be seen below.

Product Details

  • Part Number: QPB2731N
  • Manufacturer: Qorvo
  • Description: 52 dBm, WR-28, Waveguide Solid State GaN Power Amplifier from 27 to 31 GHz

General Parameters

  • Type: Power Amplifier
  • Configuration: Waveguide
  • Standards Supported: Ka Band
  • Industry Application: SATCOM
  • Frequency: 27 to 31 GHz
  • Power Gain: 13.6 dB
  • Small Signal Gain: 22.4 dB
  • Grade: Commercial, Military
  • Linear Power: 50 to 50.4 dBm
  • Linear Power: 100 to 109.64 W
  • Saturated Power: 52.6 dBm
  • Saturated Power: 181.97 W
  • PAE: 23.80%
  • Pulsed/CW: CW
  • Sub-Category: SSPA, GaN Amplifier, TWT Replacement
  • Return Loss: 17 dB
  • Input Return Loss: 17 dB
  • Supply Voltage: 22 V
  • Quiscent Current: 6 A
  • Transistor Technology: GaN
  • Dimensions: 3.25 x 2.91 x 3.86 Inches(L x W x H)
  • Input Connector: 2.92 mm – Female
  • Output Connector: WR-28
  • Weight: 2.57 Kg
  • Operating Temperature: -40 to 71 Degree C
  • Waveguide: WR-28
