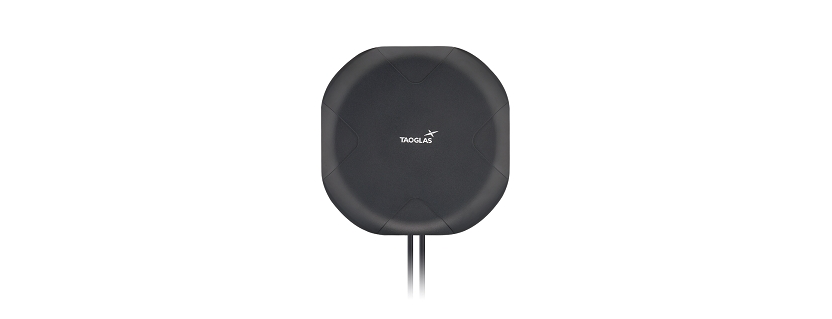

The TGX.45.A.BI.01 from Taoglas is a Cross Polarized Omnidirectional Antenna that operates in sub-6 GHz cellular bands from 450 to 6000 MHz. It consists of two dipole antennas that are orthogonally positioned with each other to efficiently receive ±45° polarized signals that are broadcast by most base stations. This also enhances its throughput capacity to provide good efficiency and gain for 5G/4G cellular communications. The cross polarized antennas’ layout also enhances MIMO performance capabilities, thus improving signal quality.

The antenna has been developed to operate in 5G NR bands between 3300-4200 MHz, and also covers Band 31 (450 MHz) & Band 71 (617 MHz) at the lower end of the 5G/4G frequency spectrum. It is available in an IP65-rated enclosure with multiple mounting options that include wall/pole or glass mounting that can be done using suction cups from Taoglas. The TGX.45.A.BI.01 is available with a CFD-200 cable (customizable length) and an SMA Male connector. It is ideal for 4×4 MIMO applications that include gateways, routers, and wireless access points.

Product Details

  • Part Number: TGX.45.A.BI.01
  • Manufacturer: Taoglas
  • Description: Cross Polarized 4G/5G Dipole Antenna from 450 to 6000 MHz

General Parameters

  • Type: Dipole
  • Directionality: Omni-Directional
  • Polarization: Cross Polarized
  • Cable: 3m TGC-200
  • Frequency: 430 to 5925 MHz
  • Gain: -4.9 to 4.8 dBi
  • Power: 10 W
  • Efficiency: 31.7 to 56.2 %
  • Industry: Cellular / Wireless Infrastructure
  • Mounting: Bracket Mount, Pole Mount
  • Impedance: 50 Ohms
  • Connectors: SMA, SMA – Male
  • Multi Band: Yes
  • Multi Port: Yes
  • Dimension: 165 x 165 x 98.5 mm
  • Weight: 494 g
  • Operating Temperature: -40 to 85 Degree C
  • RoHS: Yes
  • Waterproof: IP65
