Coilcraft High Temperature Coupled Inductors Offer Lower DCR for Greater Efficiency

Coilcraft High Temperature Coupled Inductors Offer Lower DCR for Greater Efficiency

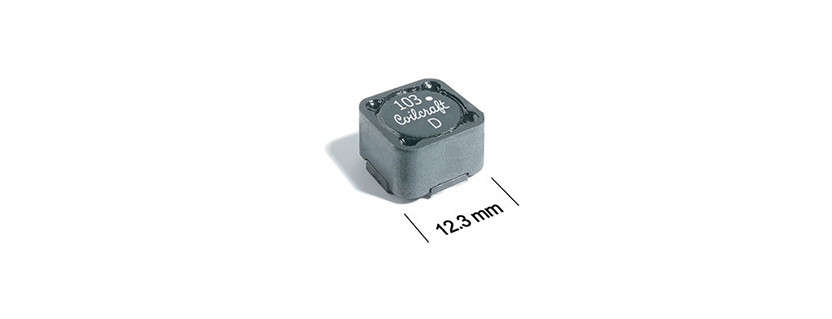

Coilcraft’s MSD1278H Series of high-temperature 1:1 coupled power inductors feature magnetic shielding for compact packaging and tight winding-to-winding coupling. They are ideal for Flyback, SEPIC, Ćuk, Zeta and other applications.

  • Tight coupling (k ≥ 0.98)
  • 500 Vrms, one minute isolation (hipot) between primary and secondary
  • Ideal for Flyback, SEPIC, Ćuk, Zeta and other applications
  • High efficiency and excellent current handling
  • Can also be used as two single inductors connected in series or parallel, as a common mode choke or as a 1 : 1 transformer.
  • AEC-Q200 Grade 1 (−40°C to +125°C)

Courtesy of Coilcraft
