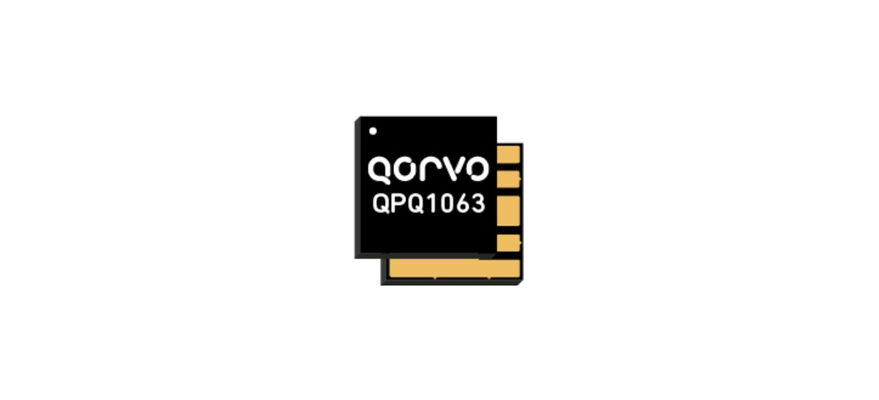

QPQ1063 Diplexer by Qorvo

QPQ1063 Diplexer by Qorvo

QPQ1063 Diplexer by Qorvo

The QPQ1063 from Qorvo is a GPS SAW Diplexer that operates from 1559.92 to 1590.92 MHz (L1) and 1212.1 to 1243.1 MHz (L2). It is designed for the rejection of unwanted GPS signals and has a bandwidth of 21 MHz for each band with an insertion loss of less than 2.1 dB. This diplexer can handle an RF input power of up to +33 dBm and provides isolation of 58 dB between bands. It has a maximum group delay variation of 22 ns and amplitude variation of up to 0.7 dB. This diplexer is available in a laminate with overmold surface-mount package (SMP) that measures 5.00 x 5.00 x 0.84 mm and is ideal for use in communication systems and general-purpose GPS applications.

Product Details

  • Part Number: QPQ1063
  • Manufacturer: Qorvo
  • Description: SAW Diplexer for GPS L1/L2 Bands

General Parameters

  • Frequency f1: 1565.19 to 1576.443 MHz
  • Frequency f2: 1217.370 to 1237.830 MHz
  • Attenuation: 26 to 54 dB
  • Attenuation f1: 26 to 54 dB
  • Attenuation f2: 37 to 49 dB
  • Insertion loss: 1.5 to 2.1 dB
  • Insertion loss f1: 1.5 to 2.1 dB
  • Insertion loss f2: 1.3 to 1.7 dB
  • Isolation: 39 to 58 dB
  • Type: SAW
  • Return loss f1: 10 to 14 dB
  • Return loss f2: 10 to 24 dB
  • Grade: Commercial, Military, Space
  • Application: GNSS, GPS – L1, GPS – L2
  • Impedance: 50 Ohms
  • Package Type: Surface Mount
  • Package: Laminate with Overmold Surface Mount Package (SMP)
  • Dimension: 5.0 x 5.0 x 0.84mm
  • Operating Temperature: -55 to 85 Degree C
  • Storage Temperature: -55 to 105 Degree C
  • RoHS: Yes
  • Note: Amplitude Variation: 0.1 to 0.7 dB, Group Delay: 3 to 22 ns
