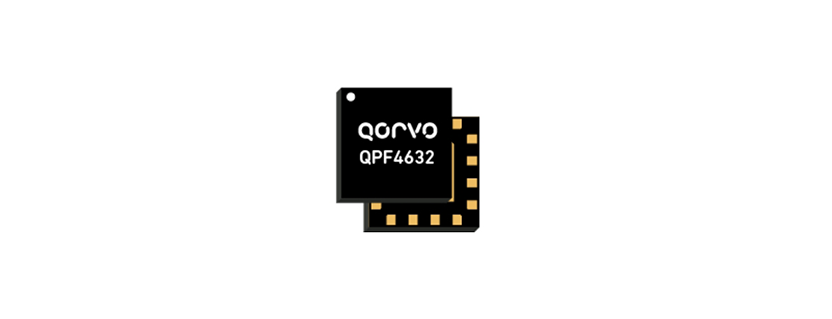

QPF4632 Front End Module by Qorvo

QPF4632 Front End Module by Qorvo

QPF4632 Front End Module by Qorvo

The QPF4632 from Qorvo is a Wi-Fi 6/6E (802.11 ax) Integrated Front-End Module that operates from 5.945 to 7.125 GHz. It consists of a Power Amplifier (PA), DC logarithmic power detector, single pole two throws (SPDT) switch, and a bypassable Low Noise Amplifier (LNA). This front-end module provides a Tx gain of 31 dB and an Rx gain of 14 dB with a noise figure of 2 dB. It has integrated matching with die-level filtering for 2nd and 3rd harmonics and 2.4 GHz band rejection for DBDC operation. The FEM requires a DC supply of 3.3 V and delivers optimum performance by conserving power consumption while maintaining the high linear output power.

The QPF4632 is available in a RoHS-compliant surface-mount package that measures 2.5 x 2.5 mm and is ideal for access points, wireless routers, residential gateways, customer premise equipment, and IoT applications.

Product Details

  • Part Number: QPF4632
  • Manufacturer: Qorvo
  • Description: Wi-Fi 6/6E Front-End Module from 5.945 to 7.125 GHz

General Parameters

  • Type: Transmit / Receive Module
  • Configuration: Switch, Power Amplifier, Low Noise Amplifier, Detector, Logarithmic Power Detector
  • Switch Configuration: SPDT
  • Application Industry: Customer Premise Equipment, Wireless Infrastructure
  • Application: Access Points, IoT, Residential Gateways, Wireless Routers
  • Wireless Standard: 802.11ax, Wi-Fi 6E
  • Bands: C Band
  • Frequency: 5.945 to 7.125 GHz
  • Current: 225 to 275 mA
  • Tx Gain: 31 dB
  • Tx P1dB: 27 dBm
  • EVM: -43 to -30 dB
  • Voltage: 3.3 V
  • Rx Gain: 14 dB
  • Rx Noise Figure: 2 dB
  • Rx Current: 14 mA
  • Package Type: Surface Mount
  • Package: Laminate
  • Dimensions: 2.5 x 2.5 mm
  • Grade: Commercial
  • RoHS: Yes
  • Note: Pout: 16 to 24 dBm ; Rejection:25 dB ; Bypass Loss:8 dB

Courtesy of everything RF
