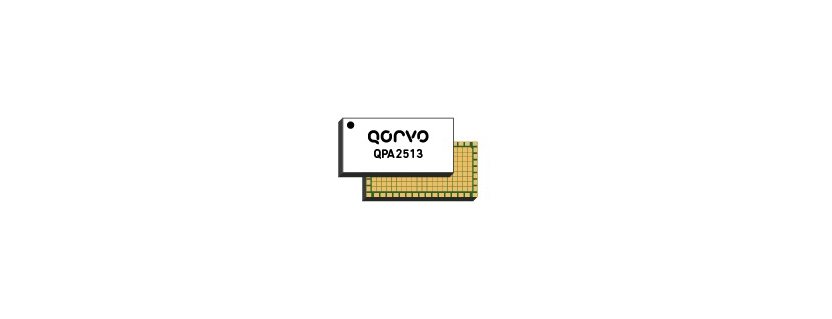

QPA2513 RF Amplifier by Qorvo

The QPA2513 from Qorvo is a RF Amplifier with Frequency 3100 to 3500 MHz, Gain 30.4 dB, Small Signal Gain 33.4 dB, Output Power 51 dBm, Output Power 125.89 W. Tags: Surface Mount, Power Amplifier. More details for QPA2513 can be seen below.

Product Details

  • Part Number: QPA2513
  • Manufacturer: Qorvo
  • Description: 125 W, GaN on SiC Power Amplifier from 3.1 to 3.5 GHz

General Parameters

  • Type: Power Amplifier
  • Configuration: IC/MMIC/SMT
  • Application: Commercial, Military, Radar
  • Industry Application: Commercial, Military, Radar
  • Frequency: 3100 to 3500 MHz
  • Gain: 30.4 dB
  • Small Signal Gain: 33.4 dB
  • Output Power: 51 dBm
  • Output Power: 125.89 W
  • Linear Power: 51 dBm
  • Saturated Power: 125.89 W
  • Input Power: 21 to 24 dBm
  • Input Power: 0.1259 to 0.2512 W
  • Impedance: 50 Ohms
  • Pulsed/CW: CW
  • VSWR: 10:1
  • Input Return Loss: -10.7 dB
  • Output Return Loss: -7 dB
  • Supply Voltage: 50 V
  • Quiscent Current: 36 to 192 mA
  • Package Type: Surface Mount
  • Dimensions: 25.0 x 12.5 x 3.488 mm
  • Connectors: SMA
  • Operating Temperature: -40 to 85 Degree C
  • Storage Temperature: -65 to 150 Degree C
  • RoHS: Yes

Courtesy of everything RF
