LPD8035V

LPD8035V High-Isolation Miniature Coupled Inductors

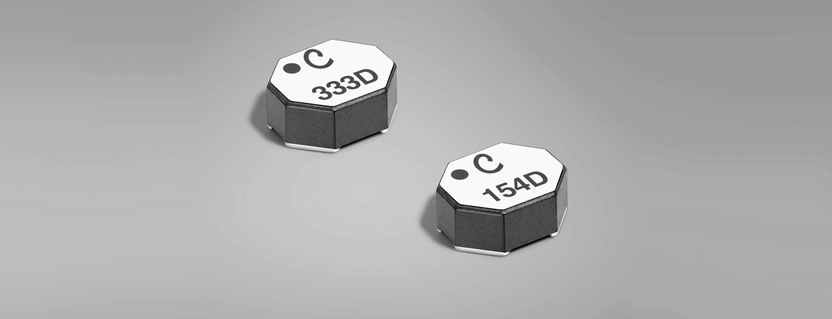

Coilcraft LPD8035V High-Isolation Miniature Coupled Inductors

  • Ultra-small package size 0 × 6.4 × 3.5 mm
  • 1500 Vrms, one minute isolation(hipot) between windings
  • Provides Functional Insulation
  • Tight coupling coefficient:>97
  • AEC-Q200Grade 3 (−40°C to +85°C) qualified.
  • Maximum part temperature 125°C
  • LPD8035V-333: Designed in TI’s LM5160and LM5017
    Fly-Buck™ reference designs (PMP15005 and PMP15006)
  • Learn more about TI’s Multi-Output Fly-Buck Regulator
    from this article on com
  • LPD8035Vand LPD5030V samples available in Designer’s Kit C481
  • RoHS-compliant, halogen free.260°C compatible.
    Matte tin over nickel over silver terminations
  • Applications: Flyback/Fly-Buck transformer, Coupled inductor
    in SEPIC applications
    and Common mode filter choke

Key features

  • AEC-Q200 Grade 3 (−40°C to +85°C) qualified
  • Maximum part temperature 125°C
  • Ultra-small package size 8.0 × 6.4 × 3.5 mm
  • Tight coupling coefficient ≥0.97
  • 1500 Vrms, one minute isolation (hipot) between windings
  • Provides Functional Insulation

Applications

  • Flyback transformer
  • Coupled inductor in SEPIC applications
  • Common mode filter choke

Courtesy of Coilcraft

Watch “Shrink Your Fly-Buck Design with Off-the-Shelf Coupled Inductors”

 PDF data sheet
