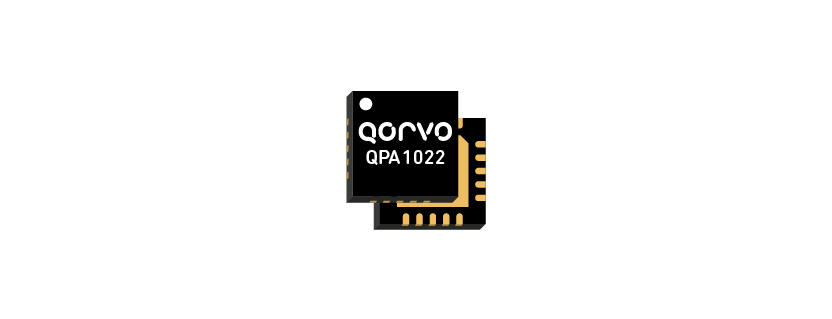

The QPA1022 from Qorvo is a GaN on SiC broadband power amplifier that operates from 8.5 to 11 GHz. It provides more than 4 watts of saturated output power, a power gain of 24.5 dB, and a return loss of over 10 dB. This amplifier requires 22 volts of power supply and is matched to 50 Ohms with integrated DC blocking capacitors at RF output and DC grounded input port.

The amplifier is available in a 4 x 4 x 0.85 mm QFN package and suitable for phased array radar and electronic warfare applications. It is also an ideal component to support test instrumentation and commercial communication systems.

Product Details

    • Part Number : QPA1022
    • Manufacturer : Qorvo
    • Description : 15 W GaN Power Amplifier from 8.5 to 11 GHz

General Parameters

    • Type : Power Amplifier
    • Configuration : IC/MMIC/SMT
    • Industry Application : Test & Measurement, Commercial, Radar, Electronic Warfare
    • Frequency : 8.5 to 11 GHz
    • Gain : 24.5 to 32 dB
    • Power Gain : 24.5 dB
    • Small Signal Gain : 32 dB
    • Output Power : 36.5 dBm
    • Output Power : 4.46 W
    • Grade : Commercial, Military, Space
    • Saturated Power : 36.5 dBm
    • Saturated Power : 4.46 W
    • Input Power : 12 dBm
    • Input Power : 0.015 W
    • PAE : 45%
    • Impedance : 50 Ohms
    • Pulsed/CW : CW/Pulsed
    • Pulse Width : 100 us
    • Duty Cycle : 10%
    • Sub-Category : GaN Amplifier, Pulsed Amplifier
    • Return Loss  : 10 to 20 dB
    • Input Return Loss : 20 dB
    • Output Return Loss : 10 dB
    • Harmonics : 25 dBc
    • Transistor Technology : GaN on SiC
    • Package Type : Surface Mount
    • Package : QFN
    • Dimensions : 4 x 4 x 0.85 mm
    • Operating Temperature : -40 to 85 Degree C
    • Storage Temperature : -55 to 150 Degree C
    • RoHS : Yes
