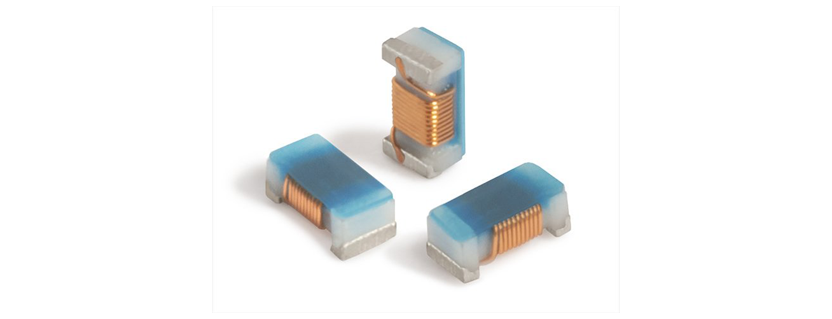

Coilcraft’s 0805HP Series ceramic wirewound chip inductors offer the industry’s highest Q factors in an 0805 size at frequencies up to 3 GHz. It is available with 23 inductance values ranging from 2.6 to 820 nH, with 2% tolerance available for most values. The 0805HP Series features a wirewound construction for highest possible self resonance – up to 9.5 GHz. It also offers significantly lower DCR (as low as 15 mΩ) than the previous generation products, making it appropriate for high current applications. To learn more, visit https://www.coilcraft.com/0805hp.cfm.

  • Our highest Q factors in an 0805 form factor
  • Excellent current handling and low DCR ratings
  • Inductance values from 2.6 nH to 820 nH
  • Tight tolerances – 2% for most
  • Wirewound construction for highest possible self resonance – up to 9.5 GHz
  • RoHS compliant, halogen free 260°C compatible. Matte tin over nickel over silver-platinum-glass frit terminations
  • COTS Plus tin-silver-copper and tin-lead terminations available
  • Samples of all 5% or 2% values available in Coilcraft Designer’s Kit C477 and C477-2

Courtesy of Coilcraft : 0805HP Ceramic Chip Inductors
