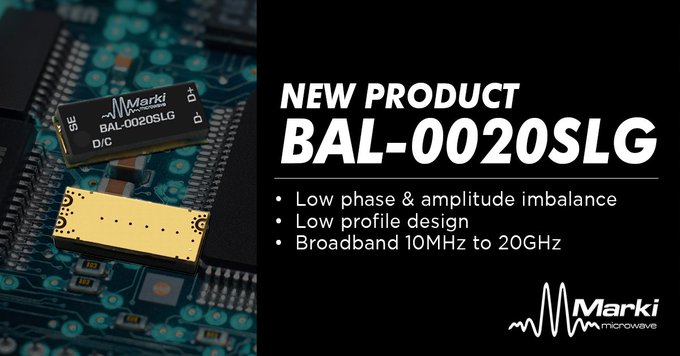

This has been quite the year for balun innovation at Marki Microwave! New differential ADCs and DACs are offering wider bandwidths and operating at higher frequencies, necessitating the development of equally impressive baluns (transformers). Our new BAL-0020SLG has an incredible 10MHz to 20GHz bandwidth to showcase the true capabilities of the market’s best data converters, enabling demanding applications such as wideband electronic warfare.

  • Exceptional phase balance to 20GHz
  • Short, narrow package allows for high channel densities
  • Design for manufacturability provides better cost and availability than previous generations

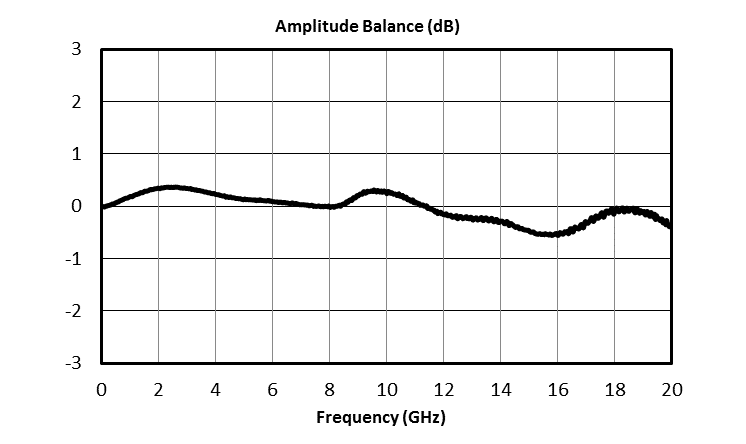

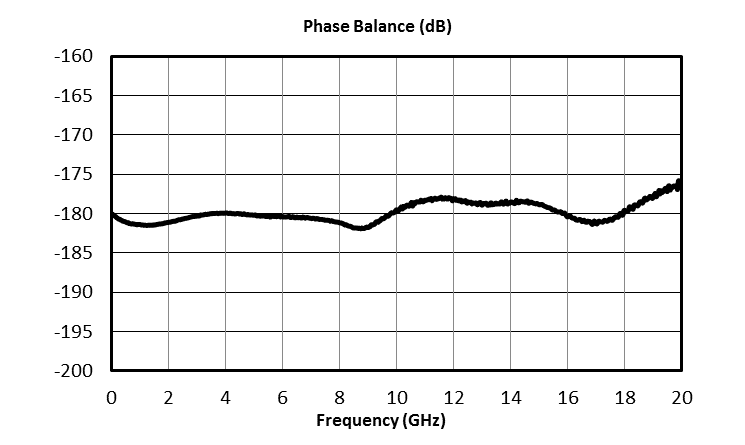

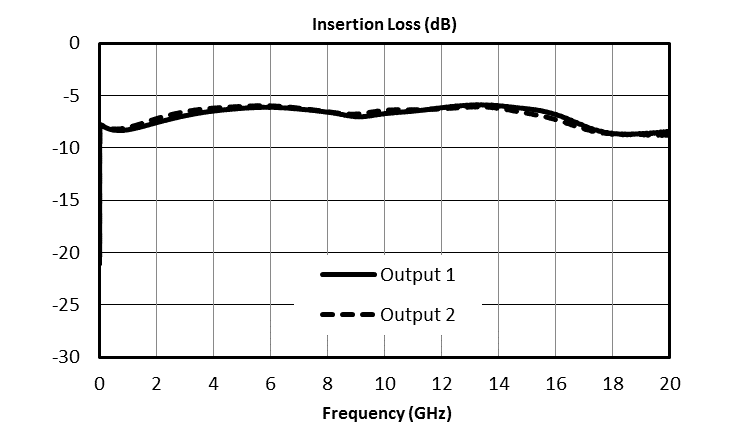

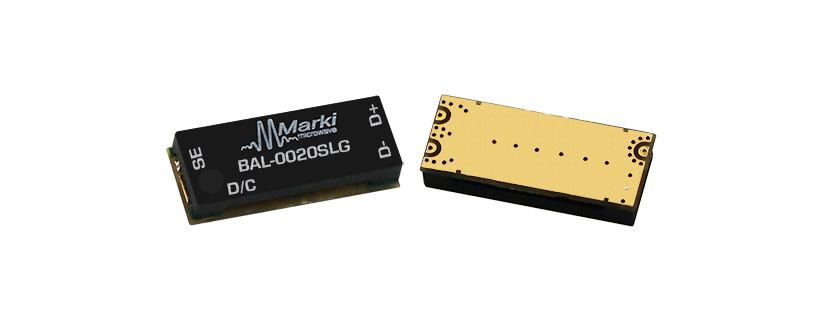

This expertly hand built ferrite/transmission line design is only 0.2″ wide with a low profile 0.11″ height to accommodate the shrinking confines of modern multi-channel architectures. Leveraging our deep engineering and manufacturing expertise, we constructed BAL-0020SLG uniquely for high volume production and are passing those savings on to our high volume customers. This balun complements other recent releases: BAL-0012SSG (10MHz-12GHz, our smallest wirewound balun), BALH-0012SSG (1:1 version),MBAL-0220SM (2-20GHz, 4mm MMIC), and MBAL-1445SM (14-45GHz, 4mm MMIC).



Product Page Datasheet Frequency Band

[GHz]

Amplitude Balance

[dB]

Phase Balance

[Degrees]

Total Insertion Loss as a mode converter

[dB]

Common Mode Rejection

[dB]

BAL-0020SLG pdf 0.01 to 20 0.4 5 4.5 35
 BAL-0012SSG pdf 0.01 to 12 0.6 5 5 26
BALH-0012SSG pdf 0.01 to 12 0.6 5 2 25
MBAL-0220SM pdf 2 to 20 0.25 3 6 30
MBAL-1445SM pdf 14 to 45 0.2 2 7 33
