Marki Microwave New Series of Compact Broadband Bias Tees With up to 35GHz Bandwidth

Save design time and time to market by using a proven bias solution from the high frequency specialists at Marki. Our new line of surface mount bias tees are built using our proprietary wire-wound coil technology and precise assembly process enabling ultra-broadband resonance-free operation in a compact .150” x .220” package. BTL models offer the lowest frequency extension, 500 kHz, with the option to extend further to 5 kHz by using an external coil. Optional bypass capacitors can be added near the DC input port to filter noise on the DC line. The BT models include the bypass capacitor on the DC line and operate down to 20 MHz. Both models support up to 35 GHz operation with low insertion loss and high return loss. Common applications include amplifier bias, laser diode bias, and DC level shifting. We also offer a wide selection of broadband connectorized bias tees to 65 GHz.

BTL-0012SMG | Freq Band .0005 to 12 GHz | Insert Loss 0.5dB | DC Current 0.5A | DC Port Isolation 35dB | DC Volt 30V

BT-0026SMG | Freq Band .02 to 26 GHz | Insert Loss 1dB | DC Current 0.5A | DC Port Isolation 40dB | DC Volt 35V

BTL-0026SMG | Freq Band .0005 to 26 GHz | Insert Loss 1dB | DC Current 0.5A | DC Port Isolation 35dB | DC Volt 30V

BT-0035SMG | Freq Band .02 to 35 GHz | Insert Loss 1dB | DC Current 0.5A | DC Port Isolation 35dB | DC Volt 30V

BTL-0035SMG | Freq Band .0005 to 35 GHz | Insert Loss 1dB | DC Current 0.5A | DC Port Isolation 35dB | DC Volt 30V

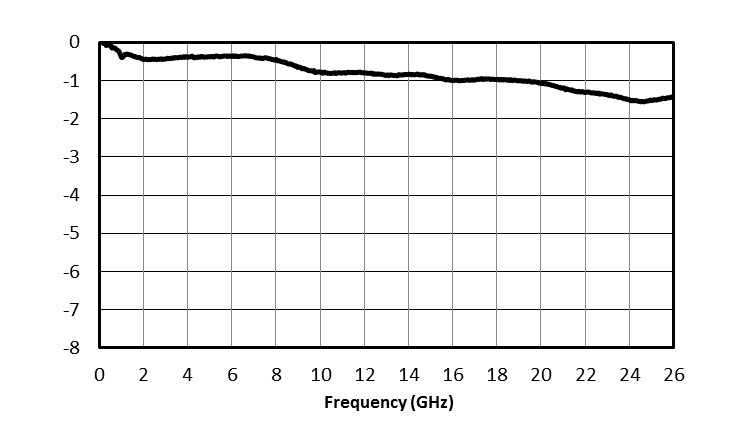

BT-0026SMG Insertion Loss:

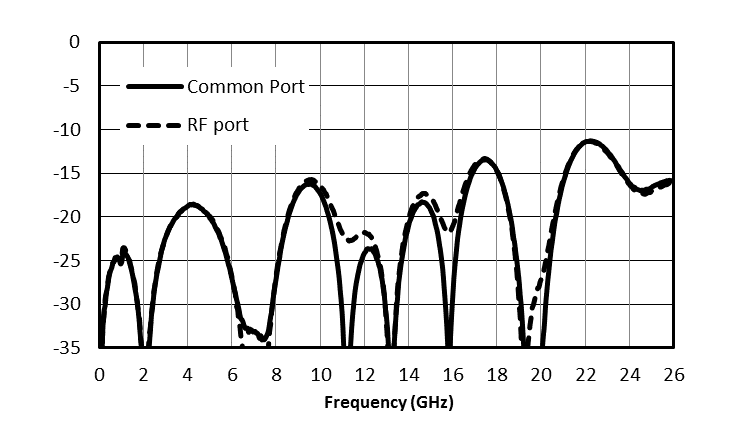

BT-0026SMG Return Loss:

Courtesy of Marki Microwave
