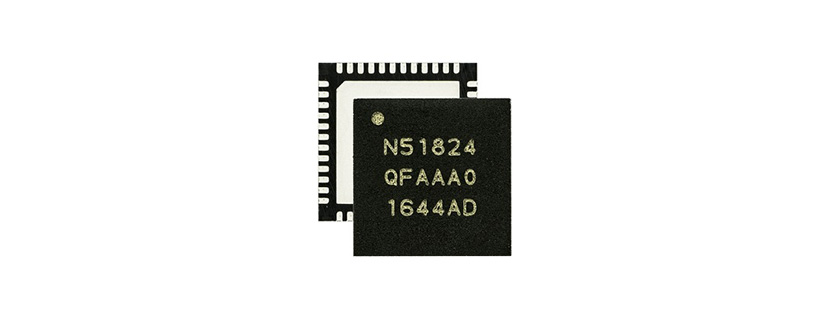

The nRF51824 from Nordic Semiconductor is a Bluetooth 4.2 (BLE) SoC for automotive Bluetooth Low Energy and 2.4 GHz proprietary wireless applications. It delivers a Tx power of 4 dBm, provides a data rate of up to 2 Mbps and can be controlled via UART, ADC, SPI, TWI and GPIO interfaces. The SoC consists of a 32-bit ARM Cortex-M0 CPU, 256 KB flash, 16 KB RAM, 10-bit ADC and a 2.4 GHz transceiver. Its analog and digital peripherals can interact directly without CPU intervention through a Programmable Peripheral Interconnect (PPI) system. The SoC supports AES encryption and 2.4 GHz proprietary protocols such as Gazell. This AEC Q100 Grade 2 qualified SoC is available in a QFN48 package that measures 6 x 6 mm and is ideal for logistics & transport, industrial automation, and automotive applications.

Product Details

  • Part Number: nRF51824
  • Manufacturer: Nordic Semiconductor
  • Description: 2.4 GHz Bluetooth 4.2 (BLE) SoC for Automotive Applications

General Parameters

  • Application: AirFuel (A4WP) in-car wireless charge mats, In car telemetry & control, Infotainment control, Tire pressure monitors (TPM), Remote Keyless Entry (RKE), Diagnostics retrieval (OBD-II), Adjustable car seats, Adjustable mirrors, Seat-belt alerts, Door alerts
  • Technology: Bluetooth
  • Frequency: 2.4 GHz
  • Bluetooth Standard: Bluetooth V4.2
  • Bluetooth Low Energy: Yes
  • Voltage: 1.8 to 3.6 V
  • Flash: 256 KB
  • Interface: SPI, 2-wire and UART
  • Mesh: Yes
  • RAM: 16 KB RAM
  • Dimension: 6 x 6 mm
  • Package: QFN48
  • Operating Temperature: -40 to +105 °C
  • Note: Grade : Automotive
